Dump Truck

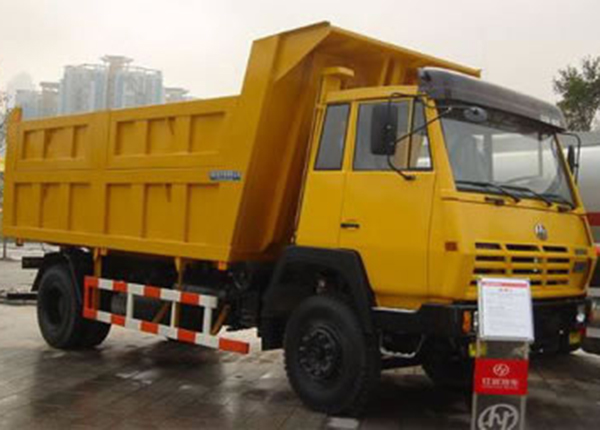

Dump Truck 4×2

This product has been discontinued and removed from our shelves.

Our 4×2 dump truck is designed to provide fuel economy and ease of maintenance to users. It adopts Hongyan XinDaKang cab and German ZF CQ8111D rotary valve steering gear for great comfort and high reliability. With this you will quickly and easily get the job down.

Dump Truck

Technical Parameters

Hongyan XinDaKang Euro II 4×2 Dump Truck
Model CQ3163TLT381
Driving type 4×2
Wheelbase mm 3800
Total mass kg 16000
Curb weight kg 8000
Rated loading weight kg 7870
Outline dimensions mm Length 7046,7170
Width 2500
Height 3250
Max. internal dimensions of body mm Length 4200,4500
Width 2300
Height 800
Max. speed km/h 79
Max. gradeability % 32
Fuel consumption under certain conditions L/100km 26
Engine model WD615.56
Clutch Single plate Φ430mm large diaphragm spring clutch
Transmission 9JS119
Cab Hongyan XinDaKang cab
Number of steel plate spring (front/rear) 9/10+6
Steering gear German ZF CQ8111D rotary valve steering gear
Driving axle Full floating, doublen reduction with differential Steyr cast steel driving axle
Frame Outside width 865mm, longeron cross section 317x80x(8+8)mm
Tire 11.00-20, 12.00-20
Emission standard Euro II
SAIC-IVECO HONGYAN Commercial Vehicle Company is a major dump truck manufacturer in China. Besides we also offer other products like tractor trucks, cargo trucks, concrete mixer trucks etc. Our heavy trucks are reliable, durable and cost-effective. Thus they are sought after by our customers in the Middle East, Africa, Central America, Southeast Asia.
If you have any questions, please feel free to contact us! Our dedicated sales staff will help you find your ideal vehicles, and our technicians will solve any technical questions.
