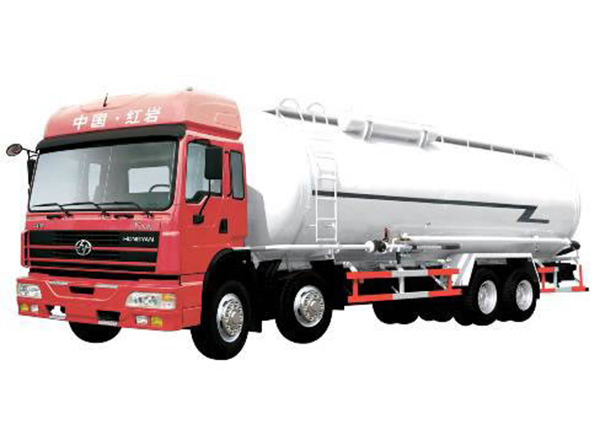

Bulk Cement Truck
This product has been discontinued and removed from our shelves.
A bulk cement truck, also known as a bulk powder transport truck, is a vehicle consisting of a special truck chassis, bulk cement tanker, pipe system and automatic unloading system. Bulk cement trucks are ideally suited for transporting dry bulk materials (with particle diameter less than 0.1mm), including fly ash, cement, lime powder, mineral powder, and more. These trucks are largely used in cement plants, cement warehouses, and on large construction sites. As cement is transported unpackaged in large quantities, packing materials and labor costs can be significantly reduced.
SAIC HONGYAN Automotive Co.,Ltd is one of the foremost bulk cement truck manufacturers in China. With more than 40 years of experience, we know how to make a reliable product. Our bulk cement trucks use solid chassis (specially designed for Hongyan bulk cement trucks) to provide greater carrying capacity. In addition, the tank body of our trucks has undergone derusting and anti-rust treatment, being highly durable. As to product efficiency, our bulk cement trucks feature high discharge speed (1m3/min) and low residual rate (3‰).
Technical Parameters| Hongyan XinDaKang Euro II 8×4 Bulk Cement Truck | ||
| Model | CQ5313GSNTMG426 | |
| Driving type | 8×4 | |
| Total mass kg | 31000 | |
| Curb weight kg | 16000 | |
| Rated loading weight kg | 14805 | |
| Wheelbase mm | 1800+4200/4600+1350 | |
| Outline dimensions mm | Length | 11995 |
| Width | 2500 | |
| Height | 3950 | |
| Max. inner size of tank mm | Length | 9500 |
| Width | 2000 | |
| Height | 2000 | |
| Max. speed km/h | 90 | |
| Max. gradeability % | 35 | |
| Fuel consumption under certain conditions L/100km | 30 | |
| Engine model | WD615.50 | |
| Engine power kw (Ps) | 213(290Hp) | |
| Clutch | Single plate large diaphragm spring Φ430mm clutch | |
| Transmission | 9JS119 | |
| Cab | Hongyan XinDaKang cab | |
| Number of steel plate spring (front/rear) | Left 14 right 13/ left 14 right 13/12 | |
| Steering gear | German ZF CQ8111D rotary valve steering gear | |
| Driving axle | Full floating,double reduction with differential Steyr cast steel driving axle | |
| Tire | 11.00-20, 12.00-20, 11.00R20, 12.00R20 | |
| Emission standard | Euro II | |
To fulfill various needs of our customers, we also provide tanker trucks, concrete mixer trucks, cargo trucks, and tippers etc., in addition to our bulk cement trucks. Using advanced IVECO prototype vehicle technology, our products are advanced, reliable and durable. Hence, they are well received by customers in the Bolivia, Peru, Saudi Arabia, Vietnam, Myanmar, among others.
For more information about heavy duty trucks, please contact us via phone, fax, or email.
-
