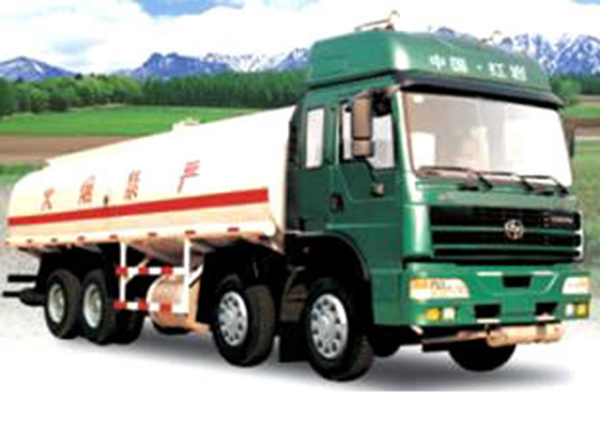

Tanker Truck
This product has been discontinued and removed from our shelves.
A tanker truck, sometimes referred to as a tank truck or road tanker, is a motor vehicle that is designed and built for carrying gases or liquefied loads on roads. Tanker trucks are made of various materials depending on what kind of products they are carrying. Generally their tanks are made by carbon steel. Other materials include fiberglass reinforced plastic and aluminium. According to their size or volume, tanker trucks can be divided into large tanker truckers and small tanker truckers. Large tank trucks are commonly used for refueling vehicles, farm machinery, boilers, construction machinery, as well as for transporting fuel to places such as hotels. In addition, these trucks can also be used to transport gasoline to service stations. Small tank trucks are primarily used to deliver light liquid cargo within a community.
SAIC HONGYAN Automotive Co.,Ltd is a tanker truck manufacturer in China. Our tanker trucks are built on our over 40 years of heavy truck manufacturing experience. They are reliable, cost-effective, practical and aesthetic. In order to ensure their carrying capacity, we use specialized chassis for Hongyan tanker trucks. Designed with safety in mind, the interior of our tanker is provided with wave making resistance for reliable and smooth driving.
Technical Parameters| Hongyan XinDaKang Euro II 8×4 Tanker Truck | ||
| Model | CQ5303GJYTMG426 | |
| Driving type | 8×4 | |
| Total mass kg | 30000 | |
| Curb weight kg | 15000 | |
| Rated loading weight kg | 14870 | |
| Wheelbase mm | 1800+4200+1350 | |
| Outline dimensions mm | Length | 11811 |
| Width | 2500 | |
| Height | 3310,3700 | |
| Max. inner size of tank mm | Length | 9000 |
| Width | 2200 | |
| Height | 1500 | |
| Max. speed km/h | 90 | |
| Max. gradeability % | 35 | |
| Engine model | 30 | |
| Engine power kw (Ps) | WD615.50 | |
| Clutch | 213(290Hp) | |
| Transmission | 9JS119 | |
| Cab | Hongyan XinDaKang cab | |
| Number of steel plate spring (front/rear) | Left 14 right 13/ left14 right13/12 | |
| Steering gear | German ZF CQ8111D rotary valve steering gear | |
| Driving axle | Full floating, double reduction with differential Steyr cast steel driving axle | |
| Tire | 11.00-20,12.00-20 | |
| Emission standard | Euro II | |
In addition to tanker trucks, we also supply other special trucks to suit your various needs, such as concrete mixer trucks and bulk cement trucks. As a result of their superior quality and competitive prices, these products are very popular in countries such as Angola, South Africa, Vietnam, Myanmar, Kazakhstan, Bolivia, Peru, Chile, to name a few.
Welcome to contact us for more information. We are certain that you will be pleased with our products.
-
