Hongyan Tampa Euro III 4×2 Tractor Truck

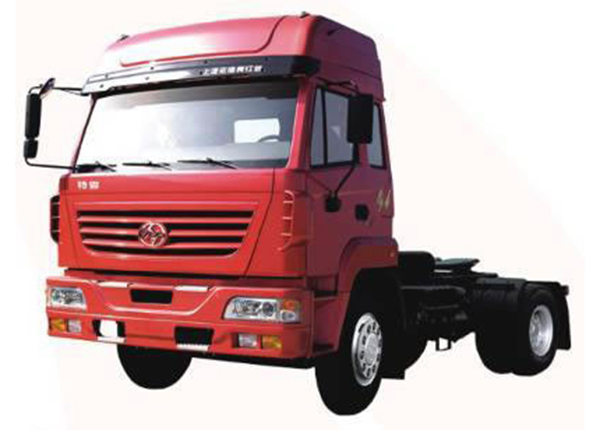

Hongyan Tampa Euro III 4×2 Tractor Truck

This product has been discontinued and removed from our shelves.

Our 4×2 tractor trucks include Hongyan XinDaKang Euro II tractor truck and Hongyan Tampa Euro III tractor truck. The former adopts specially-designed Hongyan XinDaKang cab and the latter use Hongyan Tampa cab. They all use Φ430mm single plate large diaphragm spring clutch and Fuller 9-speed transmission.

Technical Parameters

Hongyan Tampa Euro III 4×2 Tractor Truck
Model		CQ4184STWG351
Driving type		4×2
Total mass kg		42000
Tractor curb weight kg		6870
Saddle carrying capacity kg		11000
Total mass of the trailer kg		35000
Wheelbase mm		3500
Outline dimensions mm	Length	6071
	Width	2500
	Height	3344,3513,2980
Max. speed km/h		90
Max. gradeability %		28
Fuel consumption under certain conditions L/100km		38
Saddle joint face ground clearance mm		Idle load/full load: 11.00 tire+50#saddle:1341/1265;11.00 tire +90#saddle:1391/1315
Saddle front/rear turning radius mm		1540-2050/1800
Distance between saddle and balance shaft mm		560
Traction pin diameter mm		50.8 or 88.9
Engine model		WP10.336
Engine power kw(Ps)		247(336)
Max. torque/speed (N.m/(r/min))		1250/1200~1600
Clutch		Φ430mm single plate large diaphragm spring clutch
Transmission		Fuller 9
Cab		Hongyan Tampa cab
Steering gear		German ZF CQ8111D rotary valve steering gear
Driving axle		Full floating, double reduction with differential, Steyr cast steel driving axle
Tire		11.00-20,12.00-20,11.00R20,12.00R20
Emission standard		Euro III

SAIC HONGYAN Automotive Co.,Ltd is a tractor truck manufacturer based in China. We specialize in producing various kinds of heavy duty trucks, like dump trucks and cargo trucks. Knowing the importance of product quality, we use advanced IVECO prototype technology, employ highly experienced engineers, and implement strict quality control system. Hence, the quality of our products like tractor unit, dump trucks, cargo trucks is highly guaranteed. As our heavy trucks are both aesthetic and practical, they are widely accepted by customers worldwide.

We welcome you to contact us for more information!
