Tractor Truck

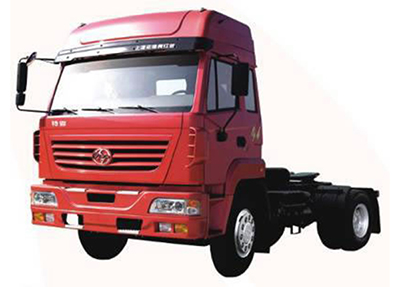

Tractor Truck 4×2

This product has been discontinued and removed from our shelves.

Our 4×2 tractor trucks include Hongyan XinDaKang Euro II tractor truck and Hongyan Tampa Euro III tractor truck. The former adopts specially-designed Hongyan XinDaKang cab and the latter use Hongyan Tampa cab. They all use Φ430mm single plate large diaphragm spring clutch and Fuller 9-speed transmission.

Tractor Truck

Technical Parameters

Hongyan XinDaKang Euro II 4×2 Tractor Truck
Model CQ4183TSG351
Driving type 4×2
Total mass kg 46000, 43500, 38100
Tractor curb weight kg 6920
Saddle carrying capacity kg 10885
Total mass of the trailer kg 38885,36585
Wheel base mm 3500
Outline dimensions mm Length 6071
Width 2500
Height 3652,3592
Max. speed km/h 90
Max. gradeability % 30, 28, 25
Fuel consumption under certain conditions L/100km 40, 38, 35
Saddle joint face ground clearance mm Idle load/Full load: 11.00tire+50#saddle:1341/1265;11.00tire+90#saddle:1391/1315
Saddle front/rear turning radius mm  1540-2050/1800
Distance between saddle and balance shaft mm 560
Traction pin diameter mm 50.8 or 88.9
Engine model WD615.46,WD615.44,WD615.50
Engine power kw(Ps) 266(360), 243(330), 213(290)
Max. torque/speed (N.m/(r/min)) 1460/1400~1600,1250/1400~1600,1160/1300~1600
Clutch Φ430mm single plate large diaphragm spring clutch
Transmission Fuller 9
Cab Hongyan XinDaKang cab
Steering gear German ZF CQ8111D rotary valve steering gear
Driving axle Full floating, double reduction with differential, Steyr cast steel driving axle
Tire 11.00-20,12.00-20,11.00R20,12.00R20
Emission standard Euro II

SAIC-IVECO HONGYAN Commercial Vehicle Company is a tractor truck manufacturer based in China. We specialize in producing various kinds of heavy duty trucks, like dump trucks and cargo trucks. Knowing the importance of product quality, we use advanced IVECO prototype technology, employ highly experienced engineers, and implement strict quality control system. Hence, the quality of our products like tractor trucks, dump trucks, cargo trucks is highly guaranteed. As our heavy trucks are both aesthetic and practical, they are widely accepted by customers worldwide.
We welcome you to contact us for more information!

Heavy Duty Truck
    1. Tractor UnitOur tractor truck introduces the European advanced technology of truck. In respect of its particular and attractive appearance, continuous reliability and high security in consistency with European standard, it leads the truck industry of China to move on a new stage.
