Offer tractor unit, dump truck, cargo truck, concrete mixer truck, bulk cement truck, tanker truck, etc.

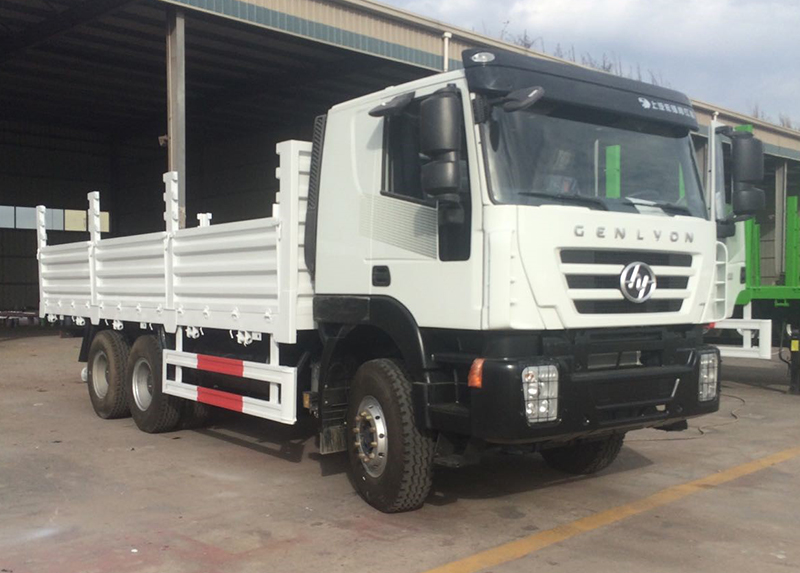

We are a reliable cargo truck manufacturer in China. With engine options up to 360hp, our Hongyan XinDaKang cargo trucks are ready to get the hard work done. As they are energy efficient and fully in accordance with Euro II emission standards, our cargo trucks are energy saving and environmentally friendly. High-strength frame, 13, 16-Ton driving axles and solid chassis all combine to ensure the high carrying capacity of our trucks. Besides, our cargo trucks adopt spacious Hongyan HY2003 full floating cab, to provide the driver with maximum comfort. Moreover, four independent braking systems are used to ensure the safety of our cargo trucks.
Technical ParametersModel | |||
Driving type | 6x4 | ||
Emission standard | Euro 5 | ||
Vehicle kerb mass (kg) | 9145 | 11230 | |
Gross vehicle weight (kg) | 25000 | 25000 | |
Maximum speed (km/h) | 90 | 90 | |
Wheelbase (mm) | 4400+1400 | 5000+1400 | |
Driver’s cabin | Flat roof cab with one sleeper | Flat roof cab with one sleeper | |
Exterior dimension (mm) | L | 9760 | 8885 |
W | 2500 | 2500 | |
H | 3201 | 3201 | |
Engine | Model | SFHC9 350 | SFHC9 390 |
Horsepower (hp) | 350 | 390 | |
Emission (L) | 8.71 | 8.71 | |
Torque (Nm) | 1500 | 1590 | |
Gearbox | FAST 10 gears | FAST 12 gears | |
Front axle | 5.5T | 7.5T | |
Drive axle | HY487 | HY300H | |
Tyre | 11.00R20 | 12.00R20 | |
Truck frame(mm) | Single truck frame | Double truck frame | |
Fuel tank(L) | 400 | 400 | |
Options | Wheelbase | 3300-5900+1400 | |
Fuel tank | 600 | ||
*The right-hand drive truck model is optional. | |||
The above parameters are only a reference. Please contact with us for specific configurations. |
