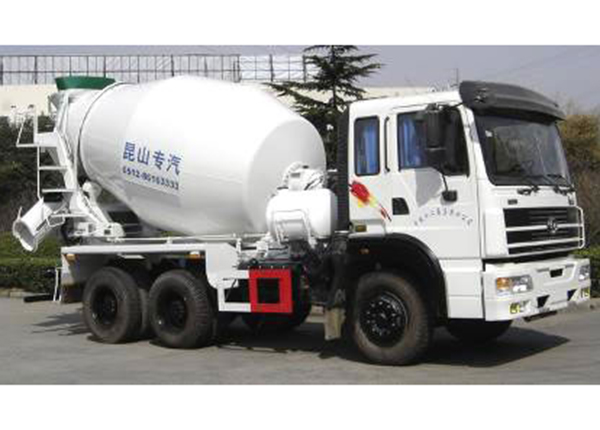

Hongyan XinDaKang Euro II 6×4 Concrete Mixer Truck
This product has been discontinued and removed from our shelves.
A concrete mixer truck is a truck specially built to transport and mix concrete to the building site. It is fitted with a cylindrical mixing drum, which continuously rotates during transport to maintain material's liquid state. After the concrete is being removed, the interior of mixing drum should be washed by the water, thus avoiding space reduction due to hardened concrete.
SAIC HONGYAN Automotive Co.,Ltd is a well-known concrete mixer truck manufacturer in China. Since our establishment, we have dedicated to providing global customers with high-quality, low-priced concrete mixer trucks. We have become one of the largest special truck suppliers because of our knowledge and the outstanding service we give to all our customers.
Key characteristics of our concrete mixer trucks include:
1. Adopt chassis which is specially designed for Hongyan XinDaKang concrete mixer trucks.
2. Conform to Euro III emission standards.
3. Pleasing appearance, reasonable layout, cost-effectiveness.
4. Imported pumps, motors and reducers to ensure their reliability.
5. Tank is constructed of special wear-resistant material for great durability.
| Hongyan XinDaKang Euro II 6×4 Concrete Mixer Truck | |||
| Model | CQ5253GJBTPG324 | ||
| Driving type | 6×4 | ||
| Total mass kg | 25000 | ||
| Curb weight kg | 12805 | ||
| Rated loading weight kg | 12000 | ||
| Mixing volume | 8 m3 | ||
| Wheelbase mm | 3225+1350 | ||
| Outline dimensions mm | Length | 8280,8450 | |
| Width | 2500 | ||
| Height | 3,850 | ||
| Max. speed km/h | 85 | ||
| Max. gradeability % | 40 | ||
| Fuel consumption under certain conditions L/100km | 30 | ||
| Engine model | WD615.44 | ||
| Engine power kw (Ps) | 243 (330Hp) | ||
| Clutch | Single plate large diaphragm spring Φ430mm clutch | ||
| Transmission | 9JS135 | ||
| Cab | XinDaKang cab | ||
| Number of steel plate spring (front/rear) | 9/12 | ||
| Steering gear | German ZF CQ8111D rotary valve steering gear | ||
| Driving axle | Full floating, double reduction with differential Steyr cast steel driving axle | ||
| Tire | 11.00-20, 12.00-20 | ||
| Emission standard | Euro II | ||
Besides providing concrete mixer trucks, we are also offering other products such as tractor trucks, dump trucks, and cargo trucks etc. Featuring superior quality, long service life and affordable prices, these products are well received in many countries worldwide, including Nigeria, Niger, Libya, Congo, Cambodia, Vietnam, Bolivia, Peru, to name a few.
If you want to know more information about our heavy trucks, please feel free to contact us! We look forward to working with you!
-
