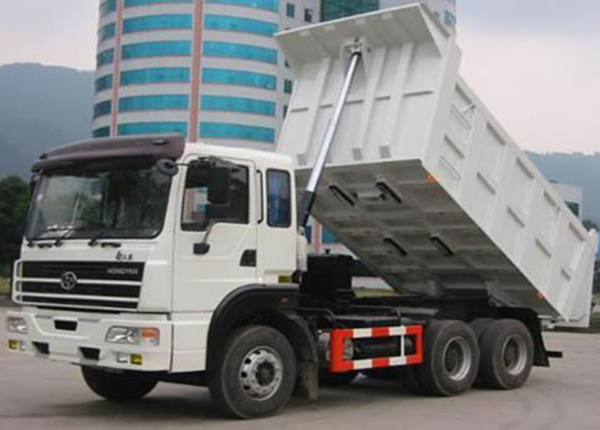

Hongyan XinDaKang Euro III 6×4 Dump Truck

Hongyan XinDaKang Euro III 6×4 Dump Truck

This product has been discontinued and removed from our shelves.

This dump truck is a heavy duty truck whose driving type is 6×4. To meet your varying requirements, we offer Hongyan XinDaKang Euro II dump trucks, Hongyan XinDaKang Euro III dump trucks and Hongyan Tampa Euro III dump trucks for you to choose from. These tippers use German ZF CQ8111D rotary valve steering gear and single plate Φ430mm large diaphragm spring clutch. Built with quality and reliability in mind, our dump trucks will last years and years.

Technical Parameters

Hongyan XinDaKang Euro III 6×4 Dump Truck
Model		CQ3254TPG384
Driving type		6×4
Wheelbase mm		3825+1350
Total mass kg		25000
Curb weight kg		12370
Rated loading weight kg		12500
Outline dimensions mm	Length	8275,8450,8625
	Width	2500
	Height	3510
Max. internal dimensions of body mm	Length	5400,5600,5800
	Width	2300
	Height	1500,1300
Max. speed km/h		80
Max. gradeability %		35,40
Fuel consumption under certain conditions L/100km		28,32
Engine model		WP10.290,WP10.336
Clutch		Single plate large diaphragm spring Φ430mm clutch
Transmission		9JS119,9JS135
Cab		Hongyan XinDaKang cab
Number of steel plate spring (front/rear)		9/12
Steering gear		German ZF CQ8111D rotary valve steering gear
Driving axle		Full floating, double reduction with differential Steyr cast steel driving axle
Frame		Outside width 865mm, longeron cross section 317x80x(8+8)mm
Tire		11.00-20, 12.00-20
Emission standard		Euro III

As an experienced dump truck manufacturer in China, SAIC HONGYAN Automotive Co.,Ltd has focused on producing high quality tippers since our beginning. To offer customers vehicles they deserve, we strictly conform to ISO9001:2000 standards, carefully inspect each manufacturing process, and use frontal crash test to measure the safety performance of our products.

In order to fulfill the needs of our customers, we continuously expand our product line. Now we can also offer other heavy duty vehicles like tractor trucks, cargo trucks, bulk cement trucks, etc.

We look forward to helping you with your heavy truck needs. For more detailed information, please contact us via phone, fax or email.
