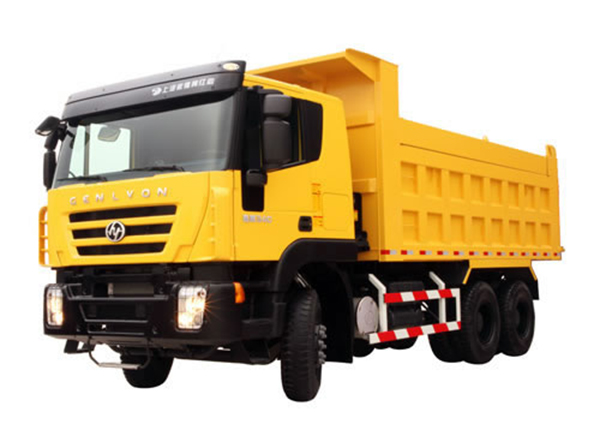

Hongyan Genlyon National III 6×4 340Hp Tipper
This product has been discontinued and removed from our shelves.
This dump truck is a heavy duty truck whose driving type is 6×4. To meet your varying requirements, we offer Hongyan XinDaKang Euro II dump trucks, Hongyan XinDaKang Euro III dump trucks and Hongyan Tampa Euro III dump trucks for you to choose from. These tippers use German ZF CQ8111D rotary valve steering gear and single plate Φ430mm large diaphragm spring clutch. Built with quality and reliability in mind, our dump trucks will last years and years.
Technical Parameters| Name | Hongyan Genlyon National III 6×4 340Hp Tipper |
| Model | CQ3314HTG366 |
| Cab | Low roof single sleeper |
| Outside Dimension (L × W × H) (mm) | 10185 × 2500 × 3510 |
| Body Volume(m3) | 21.5m3 |
| Wheelbase (mm) | 1800 + 3600 + 1350 |
| Total mass (Kg) | 31000 |
| Curb weight (Kg) | 15070 |
| Engine | F2CE0681C*B052(Cursor 9) |
| Displacement(L) | 8.71 |
| Cylinders | In-Line 6 Cylinders |
| Engine type | 4 Valves, electronic controlled common rail, turbo charging intercooler |
| Injection | Common rail |
| Emission | National III |
| Max. power(KW/r/min) | 250/1800-2100 |
| Power (BHP) | 340 |
| 1300/1100-1700 | |
| Gearbox | 12JS160T |
| Rear axle | Double reduction ratio 5.73 |
| Frame | High strength steel 865×317×8+8 |
| Brake system | S-CAM actuated drum brake F/R Dual line air brake system, ABS |
| Suspension | F/R Semi-elliptical spring |
| Steering gear | ZF hydraulic power steering gear with variable ratio |
| Clutch | Diaphragm clutch, pull-type Φ430 |
| Fuel tank | 400L aluminum fuel tank |
| Tire | 12.00R20 |
| Max. Speed (Km/h) | 80 |
| Lifting cylinder | HYVA 191 |
| Gradeability (%) | 40% |
As an experienced dump truck manufacturer in China, SAIC HONGYAN Automotive Co.,Ltd has focused on producing high quality tippers since our beginning. To offer customers vehicles they deserve, we strictly conform to ISO9001:2000 standards, carefully inspect each manufacturing process, and use frontal crash test to measure the safety performance of our products.
In order to fulfill the needs of our customers, we continuously expand our product line. Now we can also offer other heavy duty vehicles like tractor trucks, cargo trucks, bulk cement trucks, etc.
We look forward to helping you with your heavy truck needs. For more detailed information, please contact us via phone, fax or email.
-
