Dump Truck

Dump Truck 6×4

This product has been discontinued and removed from our shelves.

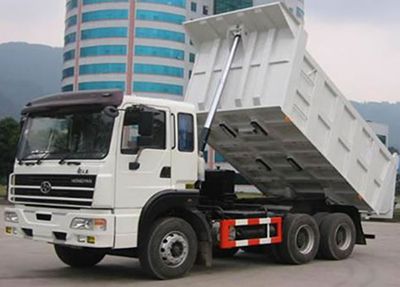

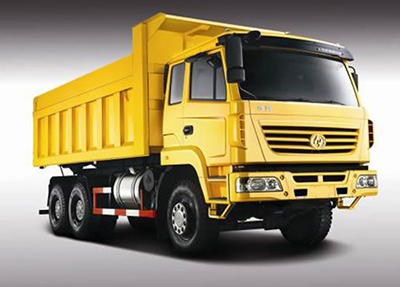

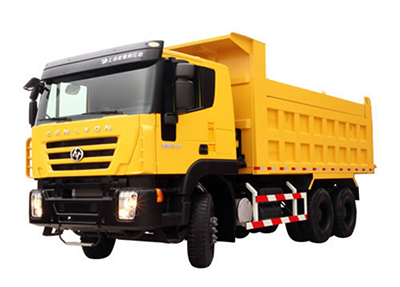

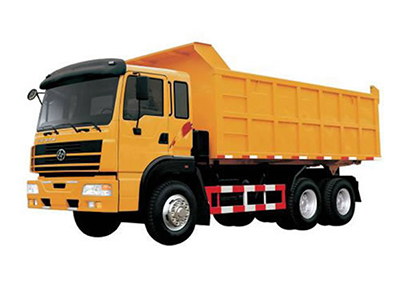

This dump truck is a heavy duty truck whose driving type is 6×4. To meet your varying requirements, we offer Hongyan XinDaKang Euro II dump trucks, Hongyan XinDaKang Euro III dump trucks and Hongyan Tampa Euro III dump trucks for you to choose from. These tippers use German ZF CQ8111D rotary valve steering gear and single plate Φ430mm large diaphragm spring clutch. Built with quality and reliability in mind, our dump trucks will last years and years.

Dump Truck

Technical Parameters

Hongyan XinDaKang Euro II 6×4 Dump Truck
Model CQ3253TMG324
Driving type 6×4
Wheelbase mm 3225+1350
Total mass kg 25000
Curb weight kg 12000
Rated loading weight kg 12805
Outline dimensions mm Length 7617,7730
Width 2500
Height 3678
Max. internal dimensions of body mm Length 4685,4800,5200
Width 2300
Height 1500,1300,1235
Max. speed km/h 80
Max. gradeability % 35
Fuel consumption under certain conditions L/100km 28
Engine model WD615.50
Clutch Single plate Φ430mm large diaphragm spring clutch
Transmission 9JS119
Cab Hongyan XinDaKang cab
Number of steel plate spring (front/rear) 9/12
Steering gear German ZF CQ8111D rotary valve steering gear
Driving axle Full floating, double reduction with differential Steyr cast steel driving axle
Frame Outside width 865mm, longeron cross section 317x80x(8+8)mm
Tire 11.00-20, 12.00-20
Emission standard Euro II
As an experienced dump truck manufacturer in China, SAIC-IVECO HONGYAN Commercial Vehicle Company has focused on producing high quality tippers since our beginning. To offer customers vehicles they deserve, we strictly conform to ISO9001:2000 standards, carefully inspect each manufacturing process, and use frontal crash test to measure the safety performance of our products.
In order to fulfill the needs of our customers, we continuously expand our product line. Now we can also offer other heavy duty vehicles like tractor trucks, cargo trucks, bulk cement trucks, etc.
We look forward to helping you with your heavy truck needs. For more detailed information, please contact us via phone, fax or email.
