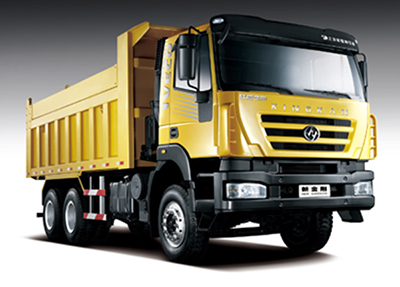

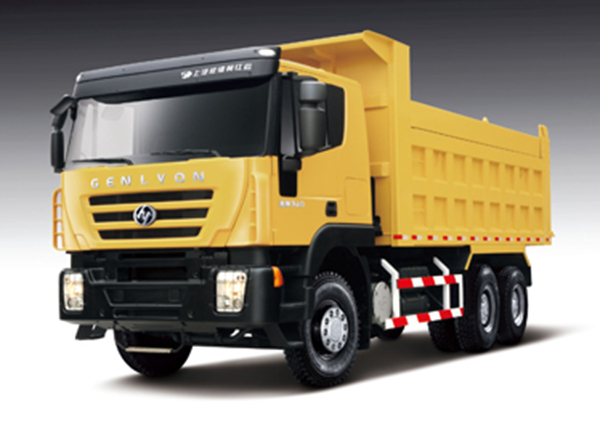

Hongyan Genlyon 6×4 Tipper Truck

Hongyan Genlyon 6×4 Tipper Truck
Consulting Products Information

Hongyan Genlyon 6×4 tipper truck's cast steel bridge comes with strong carrying capacity. The tipper truck has the widest frame in China with width up to 865mm. Due to the use of advanced surface treatment with electrophoresis paint, the 6×4 tipper truck has an outstanding anti-corrosion performance. The 6×4 tipper truck has its beam with high bending resistant, which also allows the truck to work with huge capacity loading.

Technical Parameters
Model
CQ3254HTG414
CQ3254HTG414C
CQ3254HTG384L
Chassis modelCQ3254HTG414CQ3254HTG414CCQ3254HTG384L
Driving type6 × 4
Wheelbase4125+1350 mm4125+1350 mm3825+1350 mm
Gross Vehicle Weight25000 Kg
Vehicle kerb mass12250 Kg12250 Kg12090 Kg
Maximum payload12620 Kg12620 Kg12780 Kg
Max. trailer weight------
Outside dimensionL8010 mm8375,8475 mm
W2500 mm
H3090 mm3090 mm3510,3350 mm
Cargo box dimensionL6500, 6200 mm6500, 6200 mm5600, 5800 mm
W2300 mm
H1000 mm1000 mm1200, 1150, 1100 mm
Maximum speed80 Km/h
Maximum gradeability28-45%
Fuel consumption32-38 L/100 Km
EngineWP10.336, WP10.375, F2CE0681C*B052, F2CE0681B*B052
ClutchΦ430 Pull Type Diaphragm Spring
GearboxRT-11509CRT-11509CRT-11509C,12JS160T
CabGenlyon short cabGenlyon short cabGenlyon low cab
Spring No. (F/R)9/12
SteeringZF Imported Hydraulic Power Steering With Variable Ratio
Drive axleTwin Reduction Cast Steel Axle 5.73
Frame865 × 317 × (8+8)
Tire11.00-20, 12.00-20, 11.00R20, 12.00R20
Emission STDEURO IIIEURO IIIEURO III
Bulletin No.200200200
Specification above is just for reference. To make order, please contact us.
