Hongyan Genlyon 8×4 Cargo Truck

Hongyan Genlyon 8×4 Cargo Truck
Consulting Products Information

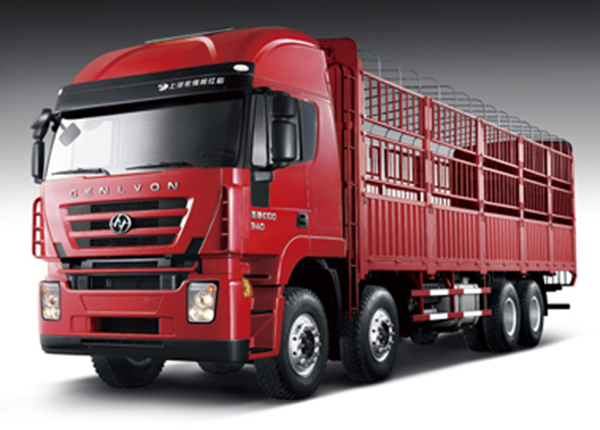

The Hongyan Genlyon 8×4 cargo truck has the single beam frame of 305 x 80 with high strength, lightweight, finely designed and strictly tested. The 8×4 cargo truck has V-type thrust rod with crossing bolt. The excellent performance of C9 engine can effectively reduce brake shoe abrasion. WABCO and ABS braking system assure reliability for the 8×4 cargo truck. The cargo truck has been designed to load more than 50 Tons. The cab, made of thick steel, keeps the truck with large dead weight and ensures safety and durability.

Technical Parameters
Model
CQ1314HTG426
CQ1314HTG466
Driving type8 × 4
Gross Vehicle Weight3100 Kg3100 Kg
Vehicle kerb mass12920, 12970, 13100 Kg13870, 12970 Kg
Maximum payload17950, 17900, 17770 Kg17000, 17900 Kg
Max. trailer weight18000 Kg
Wheelbase1800 + 4200 + 1350 mm1800+4600+1350 mm
Outside dimensionL11379, 11679, 11939 mm11939, 11979 mm
W2500 mm
H3838, 3226 mm3838, 3226 mm
Cargo box dimensionL8800, 9100, 9560 mm9400, 9560 mm
W2368 mm
H800, 600 mm800, 600 mm
Maximum speed90 Km/h
Gradeability28-45 %
Fuel consumption35-42 L/100 Km
EngineWP10.336,WP10.375,F2CE0681C*B052,F2CE0681B*B052,WP10.340E32,WP10.380E32
ClutchΦ430 Pull Type Diaphragm Spring
GearboxRT-11509CRT-11509C,12JS160T
CabGenlyon high roof Genlyon low roof
Spring No.(F/R)Left 14 right 13/ left 14 right 13/12, 3/3/4, 3/3/12
SteeringZF Hydraulic Power Steering With Variable Ratio
Drive axleTwin Reduction Cast Steel Axle 4.42Twin Reduction Cast Steel Axle4.80 Single Reduction Welding Axle 4.11
Tire11.00-20, 12.00-20, 11.00R20, 12.00R20
Emission STDEURO III
Bulletin No.200200
Specification above is just for reference. To make order, please contact us.
