Hongyan XinDaKang Euro II 8×4 Dump Truck

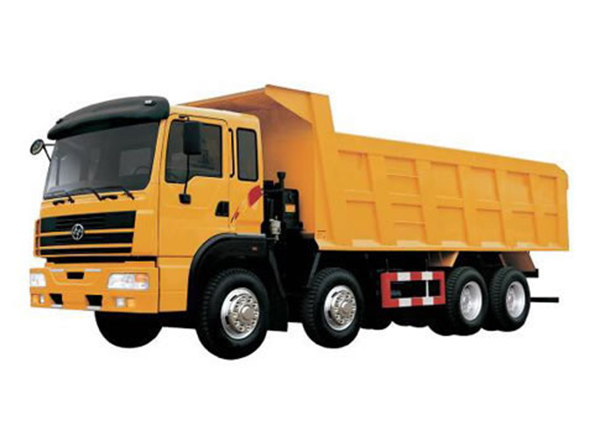

Hongyan XinDaKang Euro II 8×4 Dump Truck

This product has been discontinued and removed from our shelves.

Our dump trucks 8×4 includes Hongyan XinDaKang Euro II dump truck, Hongyan Tampa Euro II dump truck and Hongyan Genlyon National III dump truck. These products utilize German ZF steering gear. Hongyan XinDaKang tipper is equipped with WD615.44 (330Hp) engine, while Hongyan Tampa tipper adopts an engine whose model can be WD615.44, WD615.46, WD12.336, WD12.375. Hongyan Genlyon tipper is equipped with a European style flat top cab. Besides, its double reduction driving axle features large torque and high drive efficiency, and its single axle can carry maximum load of 40t.

Technical Parameters

Hongyan XinDaKang Euro II 8×4 Dump Truck
Model		CQ3303TTG306
Driving type		8×4
Total mass kg		30000
Curb weight kg		15000
Rated loading weight kg		14870
Wheelbase mm		1800+3000+1350
Outline dimensions mm	Length	9553
	Width	2500
	Height	3563
Max. internal dimensions of body mm	Length	6700
	Width	2300
	Height	1500,1300
Max. speed km/h		76
Max. gradeability %		45
Fuel consumption under certain conditions L/100km		32
Engine model		WD615.44(330Hp)
Clutch		Single plate large diaphragm spring Φ430mm clutch
Transmission		9JS135
Cab		Hongyan XinDaKang cab
Number of steel plate spring (front/rear)		Left14 right 13/ left 14 right 13/12
Steering gear		German ZF CQ8111D rotary valve steering gear
Driving axle		Full floating, double reduction with differential Steyr cast steel driving axle
Frame		Outside width 865mm, longeron cross section 317x80x(8+8)mm
Tire		11.00-20, 12.00-20
Emission standard		Euro II

SAIC HONGYAN Automotive Co.,Ltd is an established dump truck manufacturers in China. Our primary products include tractor trucks, cargo trucks, and special trucks. These products are manufactured using advanced technology and equipment, and are fully in accordance with related environmental standards. Therefore, they are very popular with customers worldwide.

Please feel free to contact us if you have any questions about heavy duty trucks. Welcome!
