Offer tractor unit, dump truck, cargo truck, concrete mixer truck, bulk cement truck, tanker truck, etc.
This product has been discontinued and removed from our shelves.

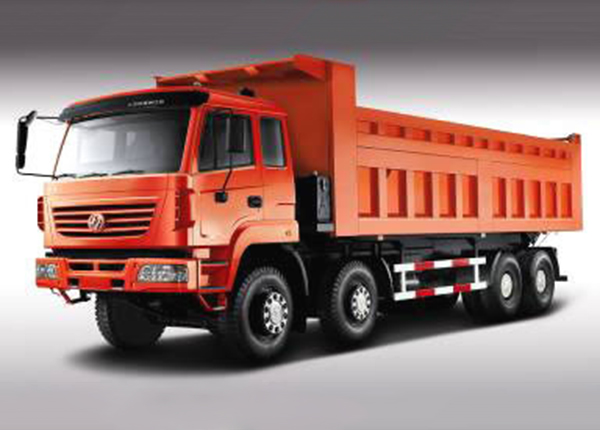

Our dump trucks 8×4 includes Hongyan XinDaKang Euro II dump truck, Hongyan Tampa Euro II dump truck and Hongyan Genlyon National III dump truck. These products utilize German ZF steering gear. Hongyan XinDaKang tipper is equipped with WD615.44 (330Hp) engine, while Hongyan Tampa tipper adopts an engine whose model can be WD615.44, WD615.46, WD12.336, WD12.375. Hongyan Genlyon tipper is equipped with a European style flat top cab. Besides, its double reduction driving axle features large torque and high drive efficiency, and its single axle can carry maximum load of 40t.Technical Parameters
|Hongyan Tampa Euro II 8×4 Dump Truck|
|Total mass kg||30000|
|Curb weight kg||15000|
|Rated loading weight kg||14870|
|Outline dimensions mm||Length||9553|
|Max. internal dimensions of body mm||Length||6700|
|Max. speed km/h||76|
|Max. gradeability %||45|
|Fuel consumption under certain conditions L/100km||32-35|
|Clutch||Single plate large diaphragm spring Φ430mm clutch|
|Cab||Hongyan Tampa cab|
|Number of steel plate spring (front/rear)||Left14 right 13/ left 14 right 13/12|
|Steering gear||German ZF CQ8111D rotary valve steering gear|
|Driving axle||Full floating, double reduction with differential Steyr cast steel driving axle|
|Frame||Outside width 865mm, longeron cross section 317x80x(8+8)mm|
|Emission standard||Euro II|
SAIC HONGYAN Automotive Co.,Ltd is an established dump truck manufacturers in China. Our primary products include tractor trucks, cargo trucks, and special trucks. These products are manufactured using advanced technology and equipment, and are fully in accordance with related environmental standards. Therefore, they are very popular with customers worldwide.
Please feel free to contact us if you have any questions about heavy duty trucks. Welcome!
