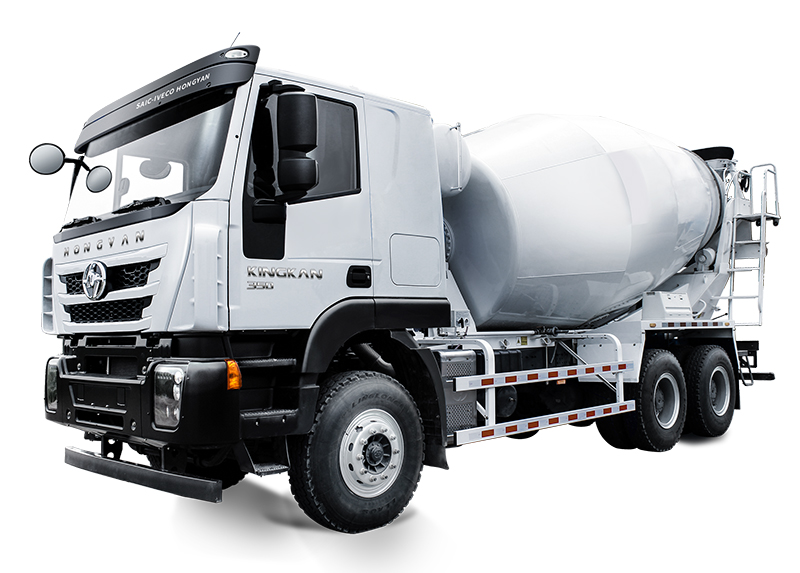

Genlyon Concrete Mixer Truck

With the rapid development of the world economy, common transport vehicles fail to satisfy customers' special needs. In this case, more specially built or modified vehicles are used for customers' special applications. These special trucks can be used to transport materials with different properties and in different states, e.g.: liquid, gaseous and bulk materials, granules; livestock, poultry, fish and other animals; toxic, inflammable and explosive goods. Tanker trucks, fire trucks, aircraft tractors, charging cars, and compressed air cars are some of common special trucks.

Specification
Model CQ5254GJBHTG384
Driving Type 6×4
Wheel Base (mm) 3825+1350
Gross Vehicle Weight (kg) 25000
Vehicle Kerb Mass (kg) 12980
Outside Dimension (mm) L 8875
W 2500
H 3950
Max. Speed (km/h) 80
Engine Cursor, C9 340
Clutch 430 diaphragm type
Transmission Fast RT-11509C
Cab Genlyon cab with air conditioner and one sleeper
Oil Tank 400L
Leaf Spring No. (F/R) 9/12
Steering ZF 8098 technology
Rear Axle/Ratio Full-floating, twin reduction with differential cast steel/speed ratio 5.73
Frame 865/317 8+8
Tire 12.00R20
Mixer Body Material Nose Cone and Thickness B520JJ, 5mm
Rear Cone and Thickness B520JJ, 5mm
Middle Section and Thickness B520JJ, 5mm
End Socket and Thickness B520JJ, 5mm
Specs of Mixing Drum and Drive System Water Capacity (m³) 8
Remainder Rate (%) 0.06
Rotating Speed of Mixing Drum 0~16
Oil Pump EATON 46
Motor EATON 46
Reducer ZF3301
Water Supply System Radiator AKG089
Water Tank Volume (L) 300
Supply Way Air pressure
Emission Standard Euro III

As a special truck manufacturer in China with decades of experience, SAIC-IVECO HONGYAN Commercial Vehicle Company is able to produce various kinds of special heavy duty trucks to suit customers' specific needs. Our typical products include concrete mixer trucks, bulk concrete trucks and tanker trucks. These products are widely used in the construction, chemical, transportation, energy, and other industries.

Apart from special trucks, we also manufacture tractor unit, dump trucks and cargo trucks. Known for their reliable performance, low fuel consumption and high durability, our products are sought after by customers in Africa, Southeast Asia, Central Asia, the Middle East, and South America.
No matter what kind of heavy duty vehicles you need, we will do our best to provide you the exact products you need, with considerate service.
