Special Truck

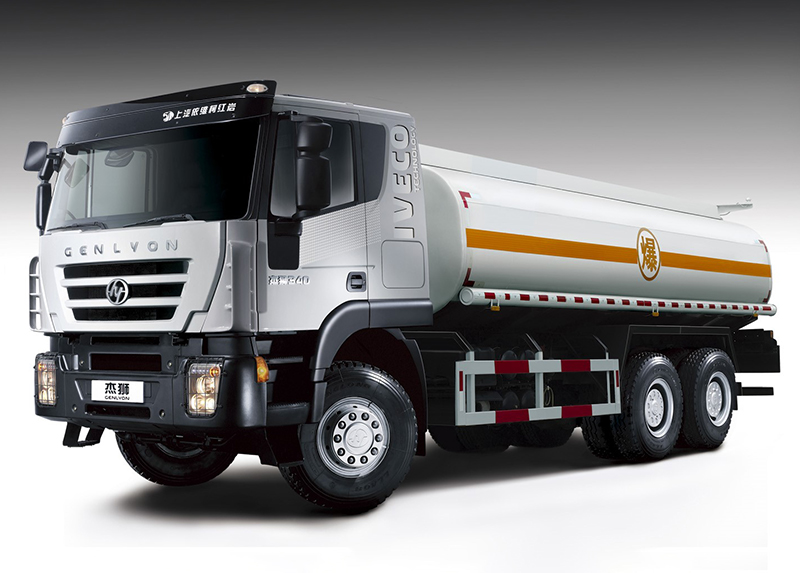

Oil Tank Truck

With the rapid development of the world economy, common transport vehicles fail to satisfy customers' special needs. In this case, more specially built or modified vehicles are used for customers' special applications. These special trucks can be used to transport materials with different properties and in different states, e.g.: liquid, gaseous and bulk materials, granules; livestock, poultry, fish and other animals; toxic, inflammable and explosive goods. Tanker trucks, fire trucks, aircraft tractors, charging cars, and compressed air cars are some of common special trucks.

Technical Specification
Model CQ5254GJYHMG434
Driving Type 6×4
Wheelbase (mm) 4325+1350
Gross Vehicle Weight (kg) 25000
Vehicle Kerb Mass (kg) 10573
Max. Payload (kg) 14297
Complete vehicle Dimension (mm) L 9560
W 2500
H 3713
Max. Speed (km/h) 80
Max. Gradeability (%) 28~45
Oil Tanker Capacity 20m³
Oil Tanker Material Carbon steel Q235
Body Thickness 5mm
Engine SFP(SAIC FIAT POWERTRAIN HONGYAN) Cursor 290
Max. Power (kw/rpm) 290hp (213kw)
Clutch Single plate spiral spring Φ430 large diaphragm-spring type
Transmission CQ9MA
Cab Hongyan Genlyon M100 cab with A/C, single sleeper
Brake System Dual circle air braking system
Axle Payload F+ R1+R2 (kg) 7000+13000+13000
Drive Axle Hub reduction welding axle with speed rate of 4.42
Suspension F/R 9/12 semi-elliptical spring
Tire 12.00R20
Fuel Tank (L) 350L
Emission Standard Euro III

As a special truck manufacturer in China with decades of experience, SAIC-IVECO HONGYAN Commercial Vehicle Company is able to produce various kinds of special heavy duty trucks to suit customers' specific needs. Our typical products include concrete mixer trucks, bulk concrete trucks and tanker trucks. These products are widely used in the construction, chemical, transportation, energy, and other industries.

Apart from special trucks, we also manufacture tractor unit, dump trucks and cargo trucks. Known for their reliable performance, low fuel consumption and high durability, our products are sought after by customers in Africa, Southeast Asia, Central Asia, the Middle East, and South America.
No matter what kind of heavy duty vehicles you need, we will do our best to provide you the exact products you need, with considerate service.
