Home » Products » Special Truck »Street Sweeper

Special Truck

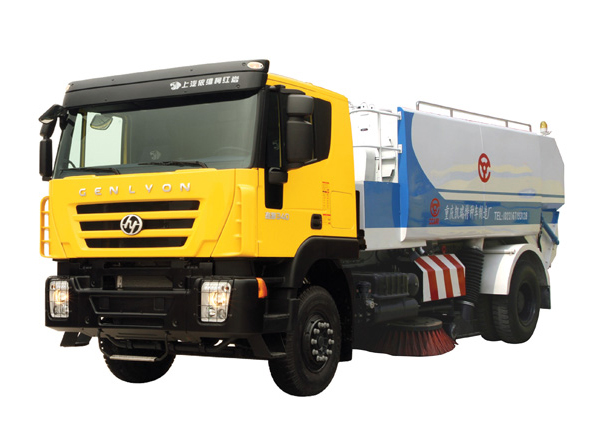

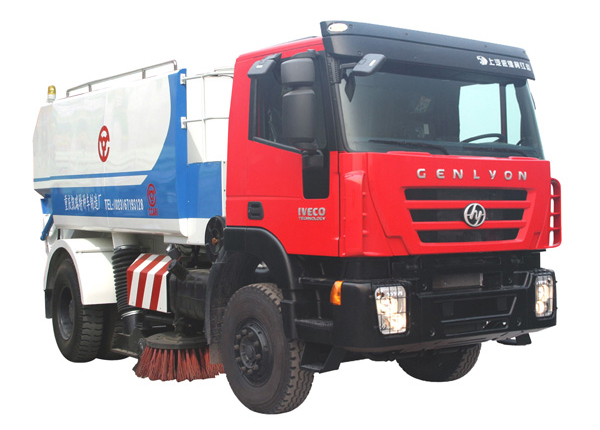

Street Sweeper

With the rapid development of the world economy, common transport vehicles fail to satisfy customers' special needs. In this case, more specially built or modified vehicles are used for customers' special applications. These special trucks can be used to transport materials with different properties and in different states, e.g.: liquid, gaseous and bulk materials, granules; livestock, poultry, fish and other animals; toxic, inflammable and explosive goods. Tanker trucks, fire trucks, aircraft tractors, charging cars, and compressed air cars are some of common special trucks.

Technical Parameters
Model CQ5165ZLJHUG461
Driving Type 4×2
Gross Vehicle Weight (kg) 16000
Kerb Mass (kg) 7120
Max. Payload (kg) 8750
Wheelbase (mm) 4600
Outside Dimension (mm) L 8005
W 2500
H 3101
Inside Dimension (mm) L 5300
W 2200
H 1490
Max. Speed 80km/h
Engine Cursor 310hp
Clutch Single plate, Φ430 large diaphragm-spring type, Φ430mm
Gearbox 10JS140
Cab Long cab with low roof
Leaf Spring No. 8/10+6
Steering ZF 8098 rotary valve steering
Rear Axle/Ratio Hub reduction rear axle welding housing/4.8,5.73
Frame 865mm×280mm×(8+5)mm
Tire 11.00R20,12.00R20

As a special truck manufacturer in China with decades of experience, SAIC-IVECO HONGYAN Commercial Vehicle Company is able to produce various kinds of special heavy duty trucks to suit customers' specific needs. Our typical products include concrete mixer trucks, bulk concrete trucks and tanker trucks. These products are widely used in the construction, chemical, transportation, energy, and other industries.

Apart from special trucks, we also manufacture tractor unit, dump trucks and cargo trucks. Known for their reliable performance, low fuel consumption and high durability, our products are sought after by customers in Africa, Southeast Asia, Central Asia, the Middle East, and South America.
No matter what kind of heavy duty vehicles you need, we will do our best to provide you the exact products you need, with considerate service.
