EV Tractor Truck

  • EV Tractor Truck

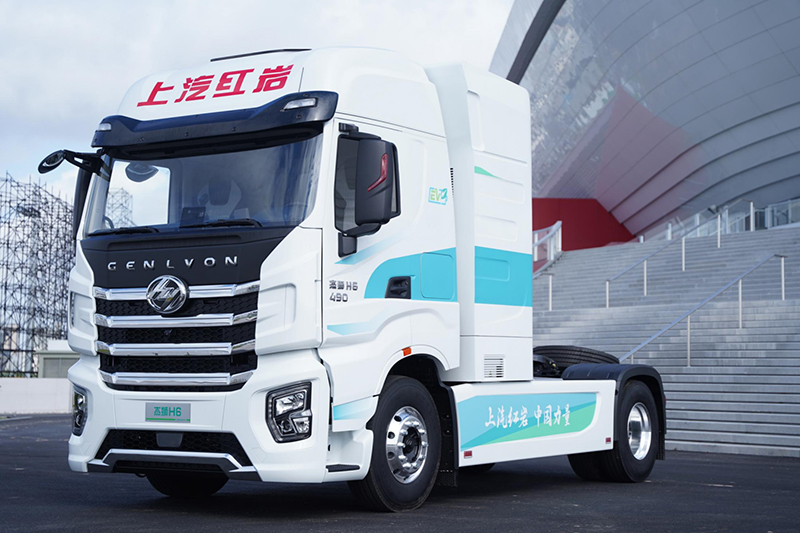

    4x2 Tractor
  • EV Tractor Truck

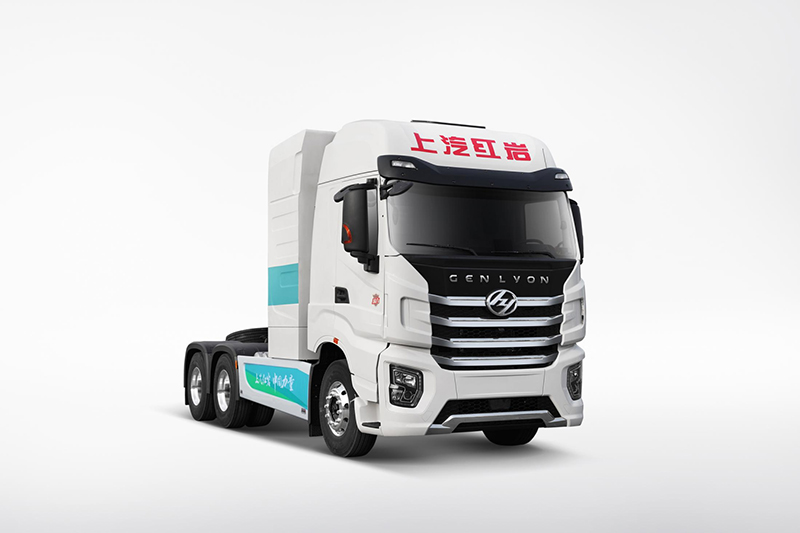

    6x4 Tractor
Technical Parameters
Model 4x2 Tractor 6x4 Tractor
Drive 4×2/2 6×4/2
Steering wheel direction (L or R) L L
Market input Application Port, short-distance transportation Port, short-distance transportation, coal, sand and gravel, steel transportation
GCW (Gross Combination Weight) (T) ≤42 ≤49
Transport distance (km) —— ≤150km
Endurance mileage (km) ≥180 ≥150
Normal speed (km/h) 60-85 60-80
Maximum speed (km/h) ≤89 ≤89
24V battery 180AH 180AH
Road conditions National highway/provincial highway/factory road National highway/provincial highway/factory road
Regulations G.V.W (T) 18 25
Kerb weight 9500kg 11500kg
G.C.W (T) 42 49
Chassis width 2.5m ● ●
Wheelbase 4×2/2 4400 ——
6×4/2 —— 3850+1400
Front wheel track 2060mm 2060mm
Rear wheel track 1840mm 1840mm
Minimum ground clearance ≥250mm ≥250mm
Approach / departure angle 17°/ 43° 17°/ 43°
Cab. 2.5m Low floor High roof, Standard length ● ●
Electric drive assembly Brand TOP GEAR ● ●
CRRC ○ ○
Electric engine assembly Permanent-magnet synchronous motor Rated/peak power（kW） 250/360 250/360
Rated/peak torque (N.m) ≥1600Nm/2500Nm ≥1600Nm/2500Nm
Drive motor speed range 0-3500rpm 0-3500rpm
Drive motor working system S9 S9
Drive motor load control mode Speed/torque control Speed/torque control
Gearbox Brand: TOP GEAR Transmission model 4-speed AMT ● ●
Brand: FAST 6-speed AMT ○ ○
Power Battery Battery type Lithium Iron Phosphate 8*CATLC1 standard box 282KW.h charging and replacing one ● ●
Brand CATL
Power battery cooling type Liquid cooling
Cycle life ≥3000 times
Front axle (self-adjusting arm) Capacity 6.5T Brake type Drum with ABS ● ●
Drive axle (self-adjusting arm) Single reduction Lightweight 457 axle (with wheel difference) Brake type Drum with ABS —— ●
435 axle (with wheel difference)
435		 Drum with ABS —— ○
H6A axle Drum with ABS ● ——
Frame 980/865 + No overhanging beam 280×80×8 ● ●
Rear axle mudguard Integral ● ●
Split ○ ○
Suspension Front Type Parabolic spring 2Pcs ● ●
Rear Type Parabolic spring 3+1 Pcs ● ——
Parabolic spring 3Pcs —— ●
Fifth wheel Model 50# ● ——
Reinforced 50# ○ ●
90# ○ ○
Tyre Model 12R22.5 ● ●
295/80R22.5 ○ ○
315/80R22.5 ○ ○
11.00R20 —— ——
12.00R20 —— ○
Rim Model/material 9.0/steel (315/12R22.5) ● ●
9.0/Aluminum alloy steel (315/12R22.5) ○ ○
9.0/Front aluminum rim and rear steel rim (315/12R22.5) ○ ○
Cab accessories Driver seat Type Luxury air suspension seat (integrated with seat belt and armrest with memory function) ● ●
Rearview mirror Type Luxury manual ● ●
Type Luxury electric adjustment (with electric heating) ○ ○
A/C Type Automatic ● ●
Flip open cab Type Manual ○ ○
Type Electro-hydraulic, turning angle＞52° ● ●
Cab suspension Type Pneumatic ○ ○
Type Spring damping four-point suspension ● ●
Bumper SMC (sheet molding compounds) non-metal 2.5m (for low floor + 2.5m chassis) ● ●
