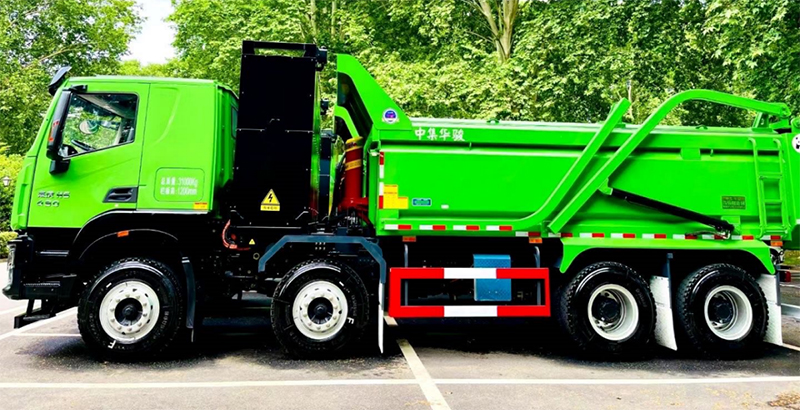

8x4 BEV Dump Truck (GENHOO)

8x4 BEV Dump Truck (GENHOO)
Consulting Products Information
Technical Parameters
Item
Configurations

Model		 CQ3310BEVES336
GVW (Gross vehicle weight) (t) 40
LxWxH (mm) 8990×2550×3420
Curb weight (kg) 16500
Total declared weight (kg) 31000
Endurance mileage (km) ≤150
Max. speed (km/h) ≤85
Battery 24V, 180AH
Max. gradeability ≤20%
Wheelbase (mm) 2000+3300+1400
Box bed length(mm) 5600
Front wheel tread (mm) 2060
Rear wheel tread (mm) 1858
Minimum ground clearance (mm) ≥250
Approach Angle/departure angle 16°/18°
Cab GENHOO flat roof
Electric drive assembly TOP GEAR
Rated/peak power(kW) 250/360
Rated/peak torque (N.m) ≥1600Nm/2500Nm
Drive motor speed range (rpm) 0-3500
Transmission model TOP GEAR TS-0430
Power takeoff unit TP-EZF680DB
Battery Lithium iron phosphate / CATL / liquid cooling / 282kW.H /charge and change
Front axle 5.5T
Rear Axle 16T double-reduction axle, HY300H, 5.73
Front suspension 8-piece
Rear suspension 12-piece
Frame (mm) 280×80/8+4
Tire 11.00 R20 tire
Steel rim 8.5-20 steel rim
Driver Seat air cushion seat
Passenger seat mechanical fixed seat
Air conditioner with
Cab suspension Spring shock absorption, four point suspension
Key remote key
Headlamp Halogen low-beam light, halogen high-beam light, LED daytime running light, LED turn signal, halogen fog light
Entertainment Radio, Bluetooth
Rear lamp LED rear combination light
Front bumper Metal front bumper
Brake 10Bar braking pressure / regenerative braking
Brake system ABS
Body color Apple green or upon request
