Heavy Duty Truck Manufacturer in China
Offer tractor unit, dump truck, cargo truck, concrete mixer truck, bulk cement truck, tanker truck, etc.

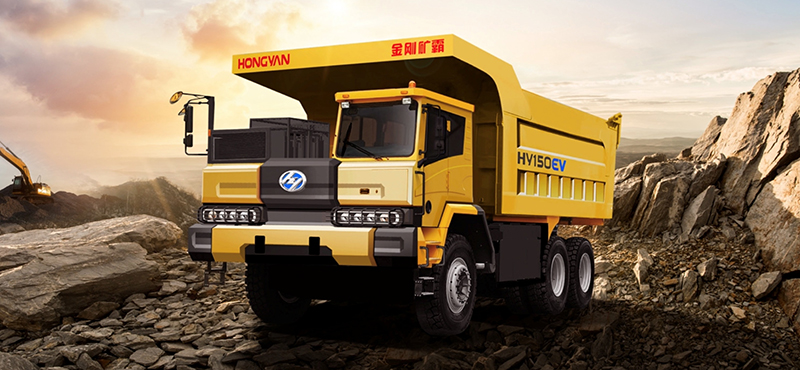

6x4 BEV Mining Tipper
| Drive form | 6X4 | ||
| Version | Standard | Heavy Duty | |
| Weight | G.V.W (T) | 120T | 130T |
| Kerbweights (T) | 42T | 45T | |
| Performance | Endurance mileage (km) | ≥100 | ≥80 |
| Maximum speed (km/h) | ≥50 | ||
| Maximum speed at full load (km/h) | ≥35 | ||
| Gradeability | ≥35% | ≥32% | |
| Min. ground clearance (mm) | 350 | 400 | |
| Approach/departure angle | 25°/45° | 29°/51° | |
| Dimensions | LxWxH (mm) | 9850×4025×4320 | 9850×4025×4380 |
| Wheelbase (mm) | 4400+1850 | ||
| Cab | Type | Flat roof, narrow-body | |
| Electric engine assembly | Rated/peak power (kW) | Dual-motor, 500/700 | |
| Rated/peak torque (N.m) | Dual-motor≥2800Nm/4000Nm | ||
| Gearbox | Type | 4-speed AMT | |
| Power battery | Battery type | Lithium Iron Phosphate | |
| Capacity | 509/563kW.h charging and replacing | ||
| Brand | CATL, LD | ||
| Cooling type | Liquid cooling | ||
| Front axle | Type | 30T | |
| Drive axle | Type | 45T+45T ratio: 16.641 | 50T+50T ratio: 16.641 |
| Suspension | Front | Hydro pneumatic suspension | |
| Rear | Semi elliptic, 16-piece | ||
| Steering system | Full hydraulic | ||
| Tyre | Type | 16.00R25 | 480/95R29 |
| Rim | 11.25/2.0-25 steel rim | 13.00/3.0×29 steel rim | |
| Brake | Type | Drum+drum | Drum+drum |
| Cab accessories | Driver seat | Mechanical seat | |
| A/C | Manual | ||
| Cab suspension | Rubber | ||
| Bumper | Metal | ||
| Body（LxWxH, m） | 6.8X3.8X1.6 m | 6.8X3.8X1.8 m | |
