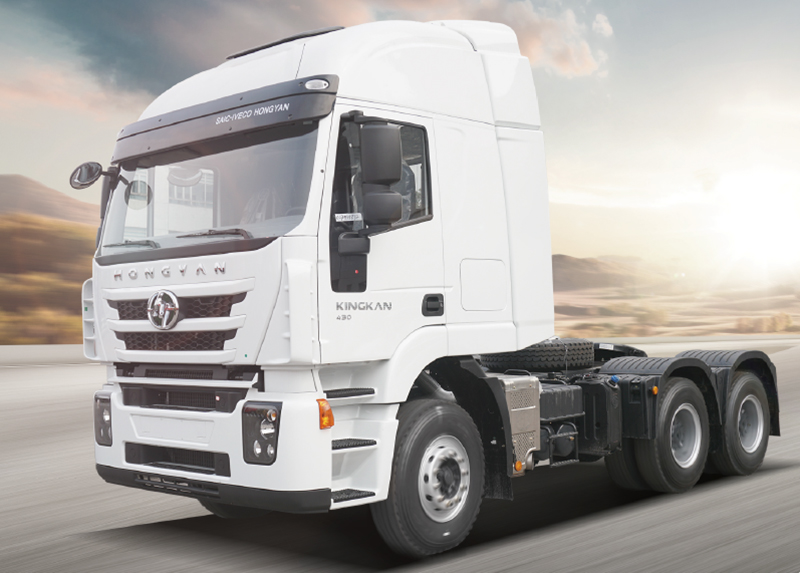

6×4 Euro V Tractor Unit (Genlyon)

6×4 Euro V Tractor Unit (Genlyon)
Consulting Products Information

Our tractor unit introduces the European advanced technology of truck. In respect of its particular and attractive appearance, continuous reliability and high security in consistency with European standard, it leads the truck industry of China to move on a new stage. This product is configured with the exclusive axle, chassis and cab painting, durable frame and it makes the drivers comfortable and joyful, becoming the optimal choice of users.

Technical Parameters
Model
CQ4256HYVG334
Driving type6x4
Emission standardEuro 5
Vehicle kerb mass (kg)8800
Gross vehicle weight (kg)25000
G.C.W(kg)49000
Maximum speed (km/h)110
Wheelbase (mm)3285+1400
Driver’s cabinHigh roof cab with twin sleeper
Exterior dimension (mm)L6855
W2500
H3777
EngineModelSFHC13 560
Horsepower (hp)560
Emission (L)12.88
Torque (Nm)2500
GearboxZF 16MT
Front axle7.5T
Drive axleH8AQ
Tyre315/80R22.5
Wheel couplingJOST 50#
Truck frame(mm)Single truck frame
Fuel tank(L)700
OptionsDriver’s cabinFlat roof cab with one sleeper
EngineSFHC13 480, SFHC13 520
Tyre315/70R22.5, 295/80R22.5
Wheel couplingJOST 90#
Fuel tank400, 500, 700+300
*The right-hand drive truck model is optional.
The above parameters are only a reference. Please contact with us for specific configurations.
