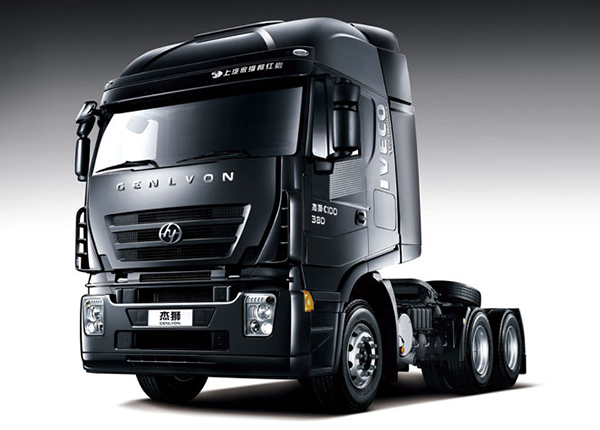

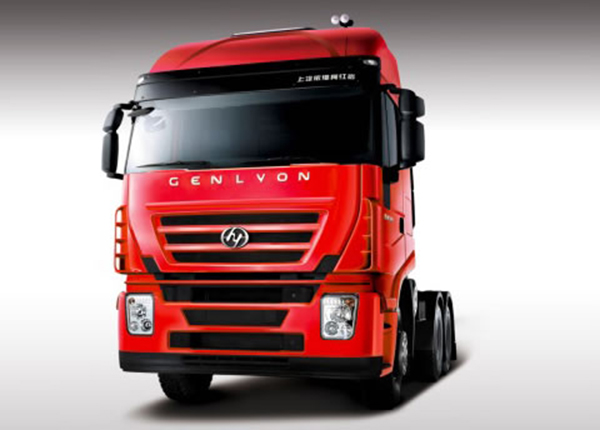

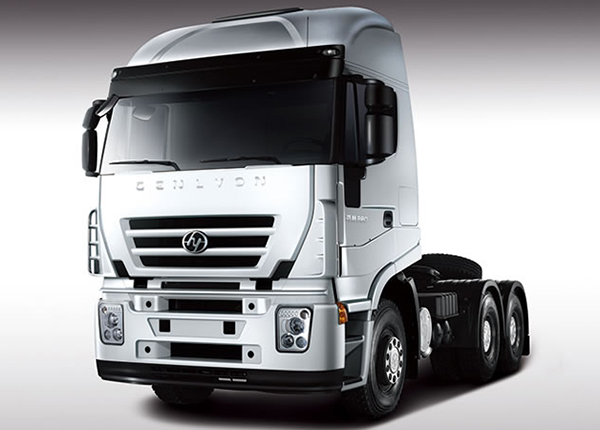

6×4 EuroIII Tractor Unit (Genlyon), Right Hand Drive

6×4 EuroIII Tractor Unit (Genlyon), Right Hand Drive
  • 6×4 EuroIII Tractor Unit (Genlyon), Right Hand Drive
  • 6×4 EuroIII Tractor Unit (Genlyon), Right Hand Drive
  • 6×4 EuroIII Tractor Unit (Genlyon), Right Hand Drive
    • Consulting Products Information

    Our tractor unit introduces the European advanced technology of truck. In respect of its particular and attractive appearance, continuous reliability and high security in consistency with European standard, it leads the truck industry of China to move on a new stage. This product is configured with the exclusive axle, chassis and cab painting, durable frame and it makes the drivers comfortable and joyful, becoming the optimal choice of users.

    Technical Parameters
    Model
    GENLYON CQ4254HTVG324
    Vehicle typeTractor
    Driving type6×4-RHD
    WeightsG.V.W. (kg.)25000
    Kerb weight (kg.)8870
    Max. Towed mass(kg)40000
    OVERALL DIMENSIONS (Mm)Overall length (mm)6718
    Cab width (mm)2500
    Cab height (mm)3832
    Wheelbase (mm)3225+1350
    Min. Ground clearance (mm)280
    Performance ParametersMaximum Speed ( km/h )110
    Economic Speed ( km/h )75-95
    Maximum Gradability ( % )18%
    Minimum Turning Diameter ( mm )7300
    CabTypeHigh roof
    EngineModelC9 380HP
    Capacity8709ml
    Max power (HP/KW)@rpm380HP/279KW @2100rpm
    Max torque (Nm) @rpm1500Nm @ 1200-1500rpm
    Emission regulation(EURO III)
    GearboxFAST 12JSD180TA
    Clutchφ430 (17")single plate, diaphragm spiral spring, pull type
    Frame SectionSingle layer,305*80*8mm
    SuspensionsFrontparabolic leaf
    Shock absorbers2 on front
    Rearsemi-elliptic leaf
    Steeringpower assisted
    Drive AxleTypeH6A,Single Reduction
    Loading13T+13T
    Ration4.11
    Tyre295/80R22.5 ,315/80R22.5, 11.00R20, 12.00R20
    Fuel Tank400 L
    Optional
    EngineC9 340HP, C13 430HP
    CabFlat Roof
