Home » Products » Tractor Unit » Genlyon EuroIII 4×2 Tractor Unit

Tractor Unit

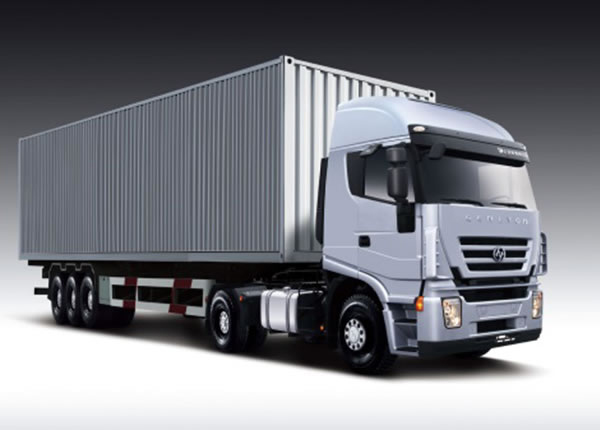

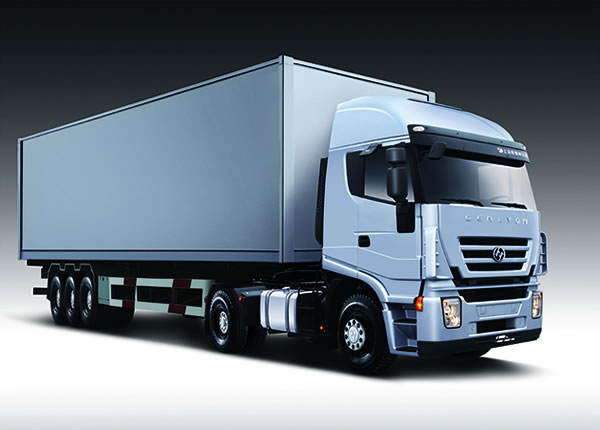

Genlyon EuroIII 4×2 Tractor Unit

Our tractor unit introduces the European advanced technology of truck. In respect of its particular and attractive appearance, continuous reliability and high security in consistency with European standard, it leads the truck industry of China to move on a new stage. This product is configured with the exclusive axle, chassis and cab painting, durable frame and it makes the drivers comfortable and joyful, becoming the optimal choice of users.

Technical Parameters
Model GENLYON CQ4184HTVG351
Vehicle type Tractor
Driving type 4×2
Weights G.V.W. (kg.) 18000
Kerb weight (kg.) 6870
Max. Towed mass(kg) 35000
Overall Dimensions (mm) Length (mm) 5913
Width (mm) 2500
Height (mm) 3797
Wheelbase (mm) 3500
Min. Ground clearance (mm) 280
Performance Parameters Maximum Speed ( km/h ) 120
Economic Speed ( km/h ) 75-95
Maximum Gradability ( % ) 25%
Minimum Turning Diameter ( m ) 6400
Cab High roof
Engine Model C9 380
Capacity 8709ml
Max power (HP/KW)@rpm 380HP/279KW @2100rpm
Max torque (Nm) @rpm 1500Nm @ 1200-1500rpm
Emission regulation EURO III
Gearbox FAST 12JSD180TA
Clutch φ430 (17")single plate, diaphragm spiral spring, pull type
Drive Axles Type Single Reduction
Ratio 4.11
Frame Section 305*80*8
Suspension Parabolic
Tyre 11.00R20,12.00R20,315/80R22.5,295/80R22.5
Fuel Tank 400L
Optional
Engine C9 340HP/310HP/290HP
Cab Flat roof
