Home » Products » Tractor Unit » Genlyon EuroIII 4×2 Tractor Unit

Tractor Unit

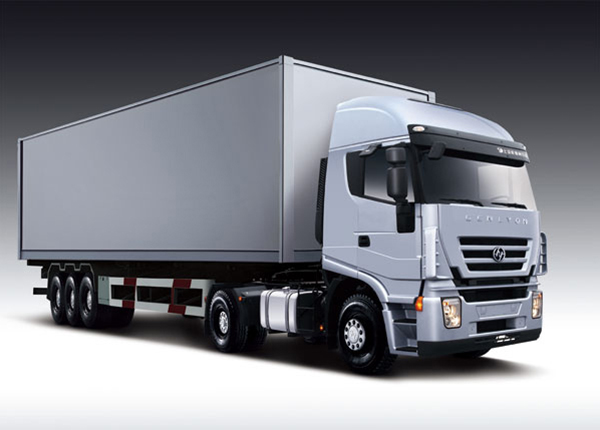

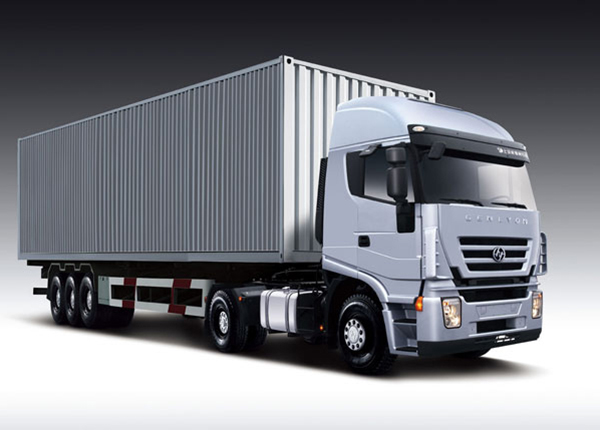

Genlyon EuroIV 4×2 Tractor Unit

Our tractor unit introduces the European advanced technology of truck. In respect of its particular and attractive appearance, continuous reliability and high security in consistency with European standard, it leads the truck industry of China to move on a new stage. This product is configured with the exclusive axle, chassis and cab painting, durable frame and it makes the drivers comfortable and joyful, becoming the optimal choice of users.

Technical Parameters
Model GENLYON CQ4185HTVG351
Driving Type 4×2
Weights Gross Vehicle Weight (kg) 18000
Kerb Weight (kg) 6870
Max. Fifth Wheel Payload (kg) 11000
Max. Towed Mass(kg) 35000
Overload Range of Gross Vehicle Weight (kg) (Road Condition) < 50000 @ complex road
Overall Dimensions (mm) Wheelbase 3500
Overall Length 5913
Cab Width 2500
Cab Height (Unladen) 3797
Front Overhang 1418
Rear Overhang 995
King Pin Diameter 90#
Min. Ground Clearance 280
Cab Type High-Roof, A/C with Double Sleeper, Auto Tilt
Suspension Mechanical Suspension
Driver Seat Adjustable Seat
Engine Model Sfh® Cursor 9 F2ce3681e×P Made By Saic-Fiat Powertrain Hongyan Co., Ltd.
Cylinder In Line 6
Capacity 8709ml
Turbocharger Inter-cooling
Max. Power (hp/kw)@Rpm 390hp/287kw @2100rpm
Max. Torque (Nm) @Rpm 1590nm @ 1270rpm
Emission Regulation (Euro 4)
Cooling Fan 2 shifts electro-magnetic
Fuel System Bosch® unit pump injector
Gearbox Fast® 12jsd180ta 12 forward shifts and 2 reverse shifts with full synchronizers with Eaton Fuller technology
Clutch Φ430 (17") single plate, diaphragm spiral spring, pull type
Brakes Type 2 independent pneumatic circuits, disc/drum
Parking Mechanical with spring cylinder, rear
Emergency Combined with parking brake
Engine Decompression (exhaust valve brake)
Abs Yes
Suspensions Front Parabolic leaf
Shock Absorbers 2 On Front
Rear Semi-elliptic leaf
Steering Zf® 8098 Power Assisted
Axles Type Hongyan exclusive high-performance H6a axle
Loading Front 9t
Rear 20t+20t
Hub Reduction No
Differential Lock Cross and inter axle
Tyre 12.00r20/315/80r22.5
Fuel Tank 400L steel with lockable fuel cap
Optional
Engine Cursor engine at 350hp, 390hp, 430hp, 480hp
Cab 1. Flat roof
2. Automatic heating rearview mirror
3. Air-suspension design
4. Pneumatic seat
