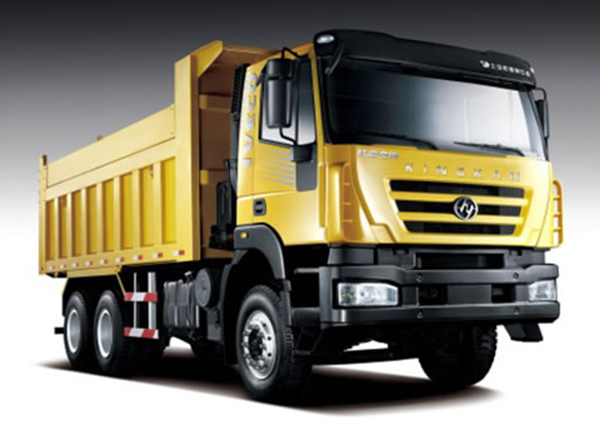

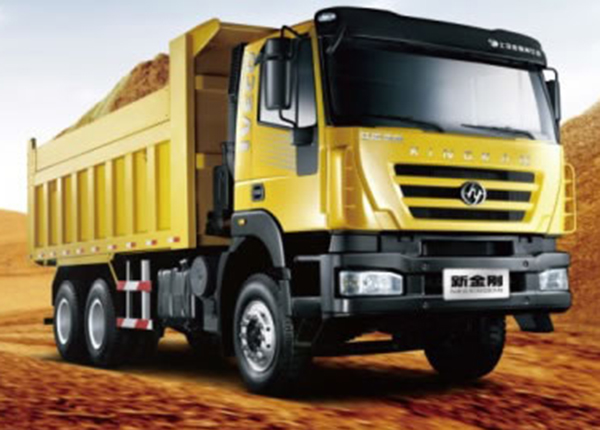

6×4 Euro IV Dump Truck (Kingkan)
Our dump truck incorporates advanced IVECO's European design and technology. It makes truck industry of China step into a new realm based on its cabin in European style, exclusive axle, distinguished vehicle painting and overall reliability. Variable designs of cargo body can be selected in consistence with the complicated road conditions. With continuous concern about the quality of product and service, the vehicle has been always the optimal choice of discriminating drivers.
Technical Parameters| Model | ||
| Driving type | 6×4 | |
| Weights | G.V.W. (kg.) | 25000 |
| Kerb weight (kg.) | 12030 | |
| Payload (kg.) @ G.V.W. | 12840 | |
| Overall Dimensions (mm) | Wheelbase | 3800+1400 |
| Overall length | 8420 | |
| Cab width | 2500 | |
| Cab height (unladen) | 3460 | |
| Front overhang | 1435 | |
| Rear overhang | 1785 | |
| Min. Ground clearance | 310 | |
| Performance Parameters | Maximum Speed ( km/h ) | 75 |
| Economic Speed ( km/h ) | 42-52 | |
| Maximum Gradability ( % ) | 35% | |
| Minimum Turning Diameter ( mm ) | 8400 | |
| Cab | Type | Flat-roof |
| Engine | Model | C9 390 |
| Capacity | 8.7L | |
| Max power (HP/KW)@rpm | 390HP/287KW @2200rpm | |
| Max torque (Nm) @rpm | 1590Nm @ 1200-1500rpm | |
| Emission regulation | (EURO IV) | |
| Gearbox | FAST 12JSD180T | |
| Clutch | φ430 (17")single plate, diaphragm spiral spring, pull type | |
| Suspensions | Front | semi-elliptic leaf |
| Rear | semi-elliptic leaf | |
| Steering | Power assisted | |
| Axles | Type | Hub Reduction ,Casting |
| Loading | 16T+16T | |
| Ration | 5.73 | |
| Tyre | 12.00R20/315/80R22.5 | |
| Fuel Tank | 350 liters steel with lockable fuel cap | |
| Cargo Body | ||
| Type | Rectangle reinforced body (more optional body type available refer to using environment) | |
| Length (mm) | 5600 | |
| Width (mm) | 2300 | |
| Height (mm) | 1200 | |
| Thickness of bottom (mm) | 12 | |
| Thickness of side (mm) | 8 | |
| Lifting system and type | HYVA®, Front lifting | |
| Optional | ||
| Engine | C9 290HP/310HP/350HP | |
| Wheelbase(mm) | 3300+1400, 3600+1400, 4000+1400, 4200+1400, 4400+1400, 4700+1400, 5000+1400 | |
| Cab | High roof | |
