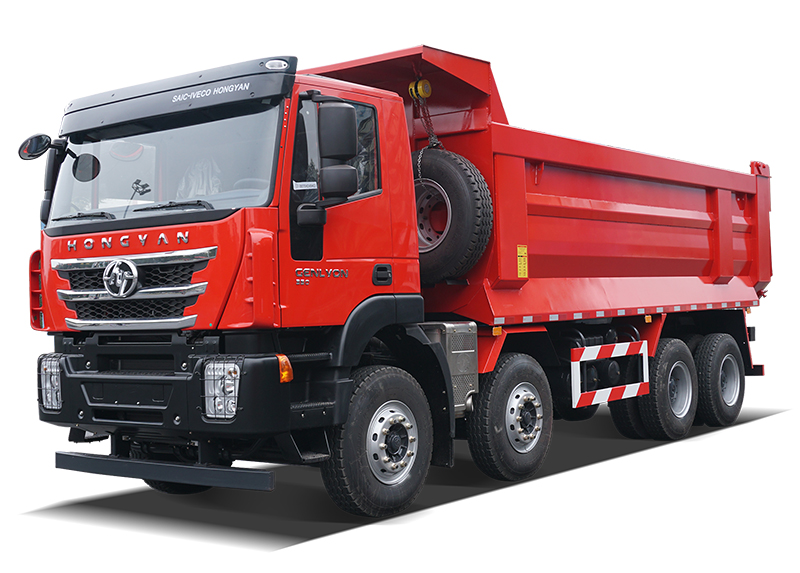

8×4 Euro V Dump Truck (Genlyon)

8×4 Euro V Dump Truck (Genlyon)
Consulting Products Information

Our dump truck incorporates advanced IVECO's European design and technology. It makes truck industry of China step into a new realm based on its cabin in European style, exclusive axle, distinguished vehicle painting and overall reliability. Variable designs of cargo body can be selected in consistence with the complicated road conditions. With continuous concern about the quality of product and service, the vehicle has been always the optimal choice of discriminating drivers.

Technical Parameters
Model
CQ3316HTVG306L
CQ3316HTVG336L
Driving type8x4
Emission standardEuro 5
Vehicle kerb mass (kg)1485015500
Gross vehicle weight (kg)3100031000
Maximum speed (km/h)8080
Wheelbase (mm)1800+3000+14001800+3300+1400
Driver’s cabinFlat roof cab with one sleeperFlat roof cab with one sleeper
Exterior dimension (mm)L85858885
W25002500
H30903090
EngineModelSFHC9 350SFHC9 390
Horsepower (hp)350390
Emission (L)8.718.71
Torque (Nm)15001590
GearboxFAST 12 gearsFAST 12 gears
Front axle7.5T7.5T
Drive axleHY320HY320
Tyre12.00R2012.00R20
Truck frame(mm)Double truck frameDouble truck frame
Fuel tank(L)400400
OptionsWheelbase1800+2700+1400
EngineSFHC11 430, SFHC13 480
Front axle9.5T
Tyre11.00R20, 315/80R22.5
Fuel tank280
*The right-hand drive truck model is optional.
The above parameters are only a reference. Please contact with us for specific configurations.
