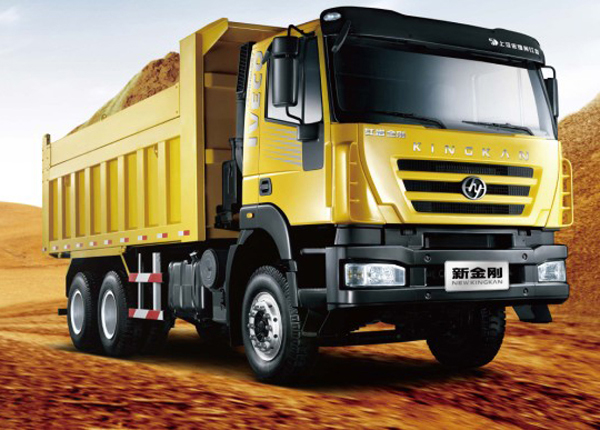

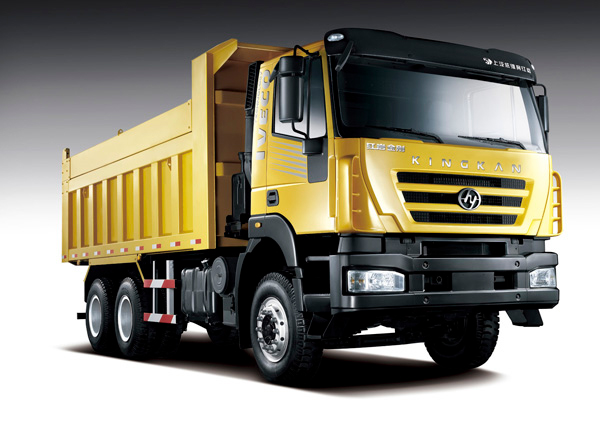

6×4 Euro III Dump Truck (Kingkan)
Our dump truck incorporates advanced IVECO's European design and technology. It makes truck industry of China step into a new realm based on its cabin in European style, exclusive axle, distinguished vehicle painting and overall reliability. Variable designs of cargo body can be selected in consistence with the complicated road conditions. With continuous concern about the quality of product and service, the vehicle has been always the optimal choice of discriminating drivers.
Technical Parameters| Model | ||
| Driving type | 6×4 | |
| Weight | Gross Vehicle Weight (kg) | 25000 |
| Kerb Weight (kg) | 12090 | |
| Payload at Gross Vehicle Weight (kg) | 12780 | |
| Overload Range of Gross Vehicle Weight (kg) (road condition) | < 65000 on complex road | |
| Overall Dimensions (mm) | Wheelbase | 3775+1400 |
| Overall Length | 8375 | |
| Cab Width | 2500 | |
| Cab Height (unladen) | 3510 | |
| Front Overhang | 1435 | |
| Rear Overhang | 1765 | |
| Min. Ground Clearance | 280 | |
| Cab | Type | Flat-roof, A/C with sleeper, manual tilt |
| Suspension | Mechanical suspension | |
| Driver Seat | Adjustable seat | |
| Engine | Model | Weichai Power WP10.340E32 |
| Cylinder (in line) | 6 | |
| Capacity | 9726ml | |
| Turbocharger | Inter-cooling | |
| Max. Power (hp/kw)@rpm | 340hp/250kw @2200rpm | |
| Max. Torque (Nm) @rpm | 1350Nm @ 1200-1600rpm | |
| Emission Regulation | (Euro 3) | |
| Gearbox | FAST® 12JSD160T 12 forward shifts and 2 reverse shifts with full synchronizers with Eaton Fuller technology | |
| Clutch | φ430 (17") single plate, diaphragm spiral spring, pull type | |
| Brakes | Type | 2 independent pneumatic circuits, drum/drum |
| Parking | Mechanical with spring cylinder, rear | |
| Emergency | Combined with parking brake | |
| Engine | Decompression (exhaust valve brake) | |
| ABS | Optional | |
| Suspensions | Front | Parabolic leaf |
| Shock Absorbers | 2 on front | |
| Rear | Semi-elliptic leaf | |
| Steering | Power assisted | |
| Axles | Type | Hongyan exclusive high-performance twin-reduction casting steel axle |
| Loading | Front 9T Rear 20T+20T | |
| Hub Reduction | Available | |
| Differential Lock | Cross and inter axle | |
| Tire | 12.00R20/315/80R22.5 | |
| Fuel Tank | 350 liters steel with lockable fuel cap | |
| Cargo Body | ||
| Type | Rectangle reinforced body (more optional body type available refer to using environment) | |
| Length (mm) | 5600 | |
| Width (mm) | 2300 | |
| Height (mm) | 1500 | |
| Bottom Thickness (mm) | 12 | |
| Side Thickness (mm) | 8 | |
| Lifting System and Type | HYVA®, front lifting | |
| Optional | ||
| Engine | WP10.340E32 WP10.380E32 or cursor engine | |
| Wheelbase(mm) | 3175+1400, 3550+1400, 4075+1400, 4275+1400, 4550+1400, 4975+1400 | |
| Cab | 1. High roof 2. Auto tilting 3. Air-suspension 4. Pneumatic seat | |
