Home » Products » Dump Truck » Genlyon EuroIV 8×4 Dump Truck

Dump Truck

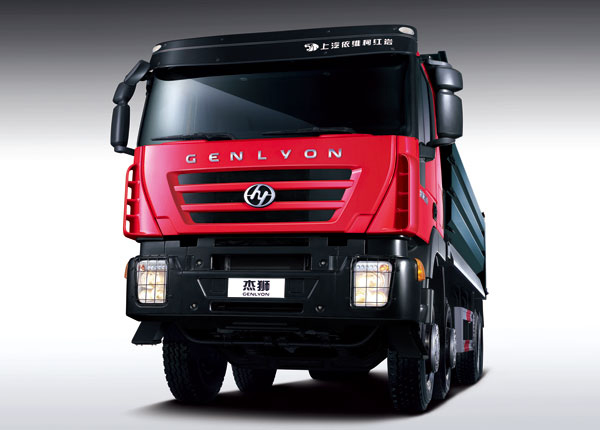

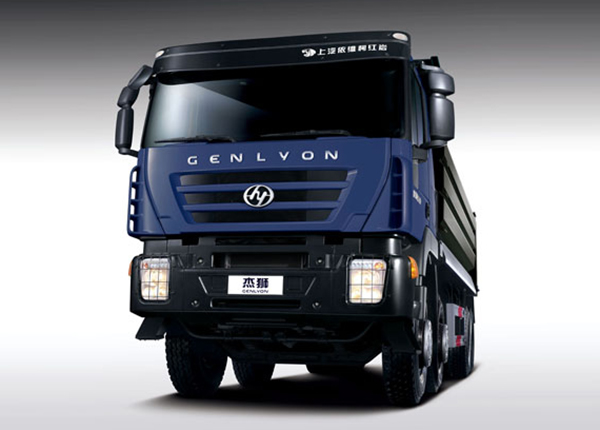

Genlyon EuroIV 8×4 Dump Truck

Our dump truck incorporates advanced IVECO's European design and technology. It makes truck industry of China step into a new realm based on its cabin in European style, exclusive axle, distinguished vehicle painting and overall reliability. Variable designs of cargo body can be selected in consistence with the complicated road conditions. With continuous concern about the quality of product and service, the vehicle has been always the optimal choice of discriminating drivers.
Technical Parameters
Model Genlyon CQ3315HTG336
Driving type 8×4
Weight Gross Vehicle Weight (kg) 31000
Kerb Weight (kg) 14920
Payload at Gross Vehicle Weight (kg) 15950
Overload Range of Gross Vehicle Weight (kg) (Road condition) < 80000 complex road
Overall Dimensions (mm) Wheelbase 1800+3325+1350
Overall Length 9820
Cab Width 2500
Cab Height (unladen) 3460
Front Overhang 1435
Rear Overhang 1910
Min. Ground Clearance 280
Cab Type Flat-roof, A/C with sleeper, manual tilt
Suspension Mechanical suspension
Driver Seat Adjustable seat
Engine Model SFH® Cursor 9 F2CE3681E×P made by Saic-Fiat Powertrain Hongyan Co., Ltd.
Cylinder (in line) 6
Capacity 8709ml
Turbocharger inter-cooling
Max. Power (hp/kw)@rpm 390hp/287kw @2100rpm
Max. Torque (Nm) @rpm 1590Nm @ 1270rpm
Emission Regulation (EURO 4)
Cooling Fan 2 shifts electro-magnetic
Fuel System BOSCH® unit pump injector
Gearbox Fast® 12JSD180T 12 forward shifts and 2 reverse shifts with full synchronizers with Eaton Fuller technology.
Clutch φ430 (17") single plate, diaphragm spiral spring, pull type
Brakes Type 2 independent pneumatic circuits, drum/drum
Parking Mechanical with spring cylinder, rear
Emergency Combined with parking brake
Engine Decompression (exhaust valve brake)
ABS Optional
Suspensions Front Parabolic leaf
Shock Absorbers 2 on front
Rear Semi-elliptic leaf
Steering ZF® 8098 power assisted
Axles Type Hongyan exclusive high-performance twin-reduction casting steel axle
Loading Front 9T+9T
Rear 20T+20T
Hub Reduction Available
Differential Lock Cross and inter axle
Tire 12.00R20/315/80R22.5
Fuel Tank 400 liters steel with lockable fuel cap
Cargo Body
Type Rectangle reinforced body (more optional body type available refer to using environment)
Length (mm) 7000
Width (mm) 2300
Height (mm) 1500
Bottom Thickness (mm) 8
Side Thickness (mm) 6
Lifting System and Type HYVA®, front lifting
Optional
Engine Cursor engine 290hp, 310hp, 350hp, 390hp
Wheelbase(mm) 1800+3025+1350, 1800+3625+1350, 1800+3925+1350
Cab 1. High roof
2. Auto tilting
3. Automatic heating rearview mirror
4. Air-suspension
5. Pneumatic seat
