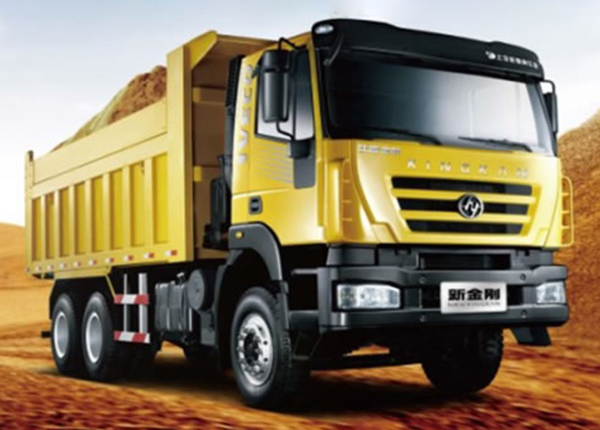

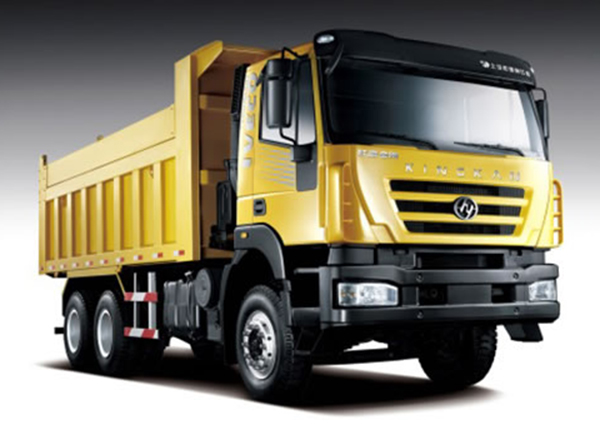

6×4 Euro III Dump Truck, Right Hand Drive (Kingkan)

6×4 Euro III Dump Truck, Right Hand Drive (Kingkan)
  • 6×4 Euro III Dump Truck, Right Hand Drive (Kingkan)
  • 6×4 Euro III Dump Truck, Right Hand Drive (Kingkan)
    • Consulting Products Information

    Our dump truck incorporates advanced IVECO's European design and technology. It makes truck industry of China step into a new realm based on its cabin in European style, exclusive axle, distinguished vehicle painting and overall reliability. Variable designs of cargo body can be selected in consistence with the complicated road conditions. With continuous concern about the quality of product and service, the vehicle has been always the optimal choice of discriminating drivers.

    Technical Parameters
    Model
    NEW KINGKAN CQ3254HTG384
    Vehicle typeTipper
    Driving type6×4 RHD
    WeightsG.V.W. (kg.)25000
    Kerb weight (kg.)12090
    Payload (kg.) @ G.V.W.12780
    Overall Dimensions (mm)Wheelbase3800+1400
    Overall length8375
    Cab width2500
    Cab height (unladen)3510
    Front overhang1435
    Rear overhang1765
    Min. Ground clearance310
    Performance ParametersMaximum Speed ( km/h )75
    Economic Speed ( km/h )42-53
    Maximum Gradability ( % )30%
    Minimum Turning Diameter ( mm )8400
    CabTypeFlat roof, Day cab
    EngineModelC9 340
    Capacity8.7L
    Max power (HP/KW)@rpm340HP/250KW @2100rpm
    Max torque (Nm) @rpm1450Nm @ 1200-1500rpm
    Emission regulation(EURO III)
    GearboxFAST 12JSD160T
    Clutchφ430 (17")single plate, diaphragm spiral spring, pull type
    FrameDouble layer ,317*80*8+8
    SuspensionsFrontsemi-elliptic leaf
    Rearsemi-elliptic leaf
    SteeringPower assisted
    Drive AxleTypeHub Reduction, Casting
    Loading16T
    Ratio5.73
    Tyre11.00R20/12.00R20/315/80R22.5
    Fuel Tank400 L
    Cargo Body
    TypeRectangle reinforced body
    Length (mm)5600
    Width (mm)2300
    Height (mm)1500
    Lifting system and typeHYVA®, Front lifting
    Optional
    EngineC9 380HP
    Wheelbase(mm)3600+1400, 4100+1400
    CabFlat roof, sleeper
