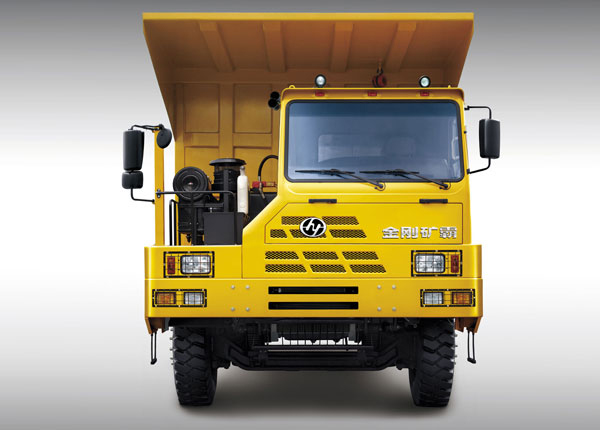

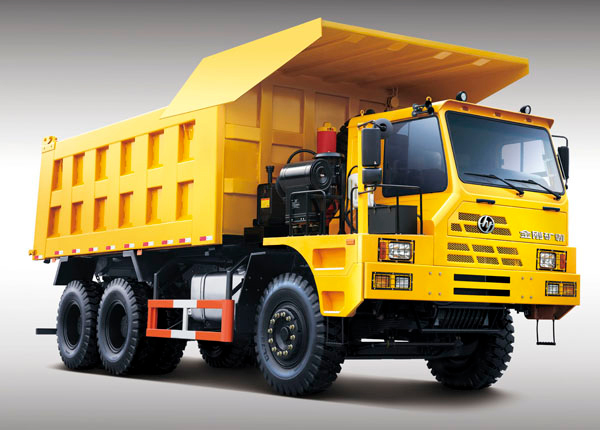

    Our dump truck incorporates advanced IVECO's European design and technology. It makes truck industry of China step into a new realm based on its cabin in European style, exclusive axle, distinguished vehicle painting and overall reliability. Variable designs of cargo body can be selected in consistence with the complicated road conditions. With continuous concern about the quality of product and service, the vehicle has been always the optimal choice of discriminating drivers.

    Technical Parameters
    Vehicle TypeKingkan Mining Wide-Body Tipper
    Model Number
    CQ5763PTG384
    CabSide positioned wide cabin
    Outside Dimension8530×3300 ×4180
    (L×W×H) (mm)
    Body Inside Dimension5600mm×3000mm×1600mm (26.8m³)
    Cargo Body Ply (mm)Floor board 16×side board 12
    Wheelbase (mm)3800+1550
    Gross Vehicle Weight (kg)76000
    Kerb Mass (kg)26000
    Load50000
    EngineWD615.47
    Displacement (L)9.726
    Cylinders6 in-line cylinders
    Combustion Type2 valves, turbocharging, intercooler
    InjectionDirect injection
    Emission StandardEuro II, China II
    Max. Output (kw/r/min)273/2200
    Power (Bhp)371
    Max. Torque (Nm/r/min)1500/1100~1600
    Gearbox10JSD180K
    Front Axle16T Meritor front axle
    Rear Axle40t Meritor twin reduction axle with speed ratio of 10.47
    FrameHigh performance steel
    1120mm×380mm×10+10mm
    Brake SystemS-CAM actuated drum brake F/R
    Dual circle air brake system
    SuspensionF/R semielliptical suspension
    SteeringZ03 Henglong hydraulic power steering with constant ratio
    ClutchDiaphragm clutch, pull-type Φ430 clutch
    Fuel Tank500L square aluminum magnesium alloy fuel tank
    Tire12.00R20
    Max. Speed (km/h)52
    Lifting CylinderHYVA 172
