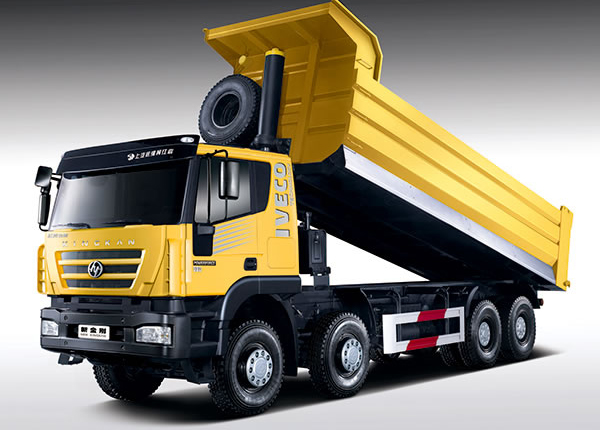

8×4 Euro IV Dump Truck (Kingkan)

8×4 Euro IV Dump Truck (Kingkan)
  • 8×4 Euro IV Dump Truck (Kingkan)
  • 8×4 Euro IV Dump Truck (Kingkan)
  • 8×4 Euro IV Dump Truck (Kingkan)
  • 8×4 Euro IV Dump Truck (Kingkan)
    • Consulting Products Information

    Our dump truck incorporates advanced IVECO's European design and technology. It makes truck industry of China step into a new realm based on its cabin in European style, exclusive axle, distinguished vehicle painting and overall reliability. Variable designs of cargo body can be selected in consistence with the complicated road conditions. With continuous concern about the quality of product and service, the vehicle has been always the optimal choice of discriminating drivers.

    Technical Parameters
    Model
    NEW KINGKAN CQ3315HTG336
    Driving type8×4
    WeightsG.V.W. (kg.)31000
    Kerb weight (kg.)14920
    Payload (kg.) @ G.V.W.15950
    Overall Dimensions (mm)Wheelbase1800+3300+1400
    Overall length9820
    Cab width2500
    Cab height (unladen)3460
    Front overhang1435
    Rear overhang1910
    Min. Ground clearance310
    Performance ParametersMaximum Speed ( km/h )75
    Economic Speed ( km/h )42-52
    Maximum Gradability ( % )30%
    Minimum Turning Diameter ( mm )10800

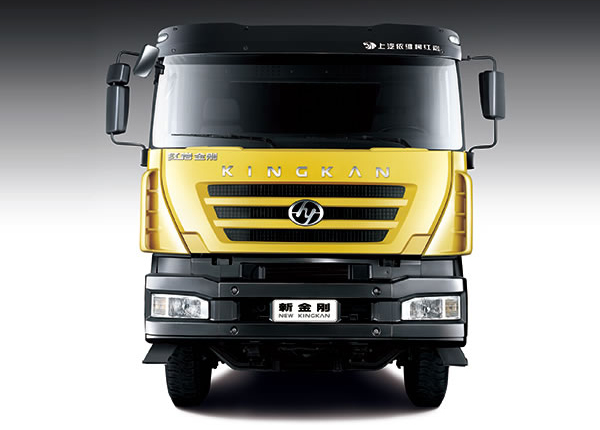

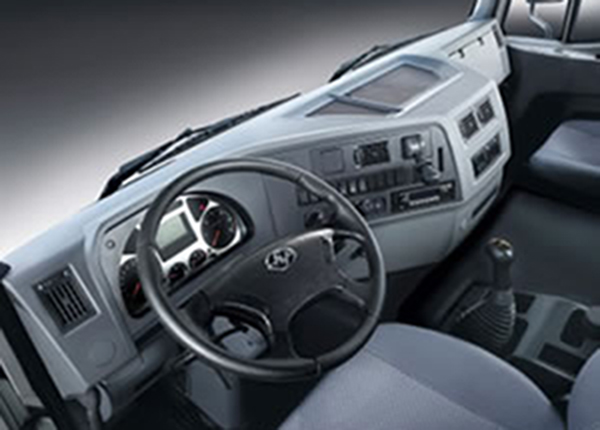

    CabTypeFlat-roof
    EngineModelC9 390
    Capacity8.7L
    Max power (HP/KW)@rpm390HP/287KW @2100rpm
    Max torque (Nm) @rpm1590Nm @ 1200-1500rpm
    Emission regulation(EURO IV)
    GearboxFAST 12JSD180T
    Clutchφ430 (17")single plate, diaphragm spiral spring, pull type
    Framedual-layer 317*80*8+8
    SuspensionsFrontsemi-elliptic leaf
    Rearsemi-elliptic leaf
    Steeringpower assisted

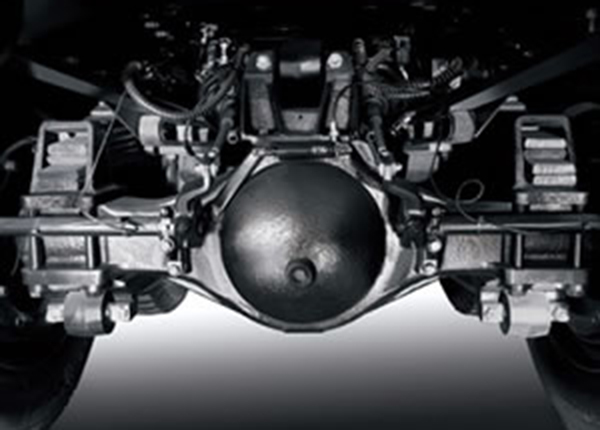

    Drive AxlesTypeHub Reduction,Casting
    Loading16T+16T
    Ration5.73
    Tyre12.00R20/315/80R22.5
    Fuel Tank350 liters steel with lockable fuel cap
    CARGO BODY
    TypeRectangle reinforced body (more optional body type available refer to using environment)
    Length (mm)7000
    Width (mm)2300
    Height (mm)1200
    Thickness of bottom (mm)8
    Thickness of side (mm)6
    Lifting system and typeHYVA®, Front lifting
    OPTIONAL
    EngineC9 290HP/310HP/350HP
    Wheelbase(mm)1800+3000+1400, 1800+3600+1400, 1800+3900+1400, 1800+4200+1400, 1800+4600+1400, 1800+4800+1400
    CABHigh Roof
